Ref:

VEGA45W

Wide Collimator

45mm COB-oriented collimator in PMMA

More details :

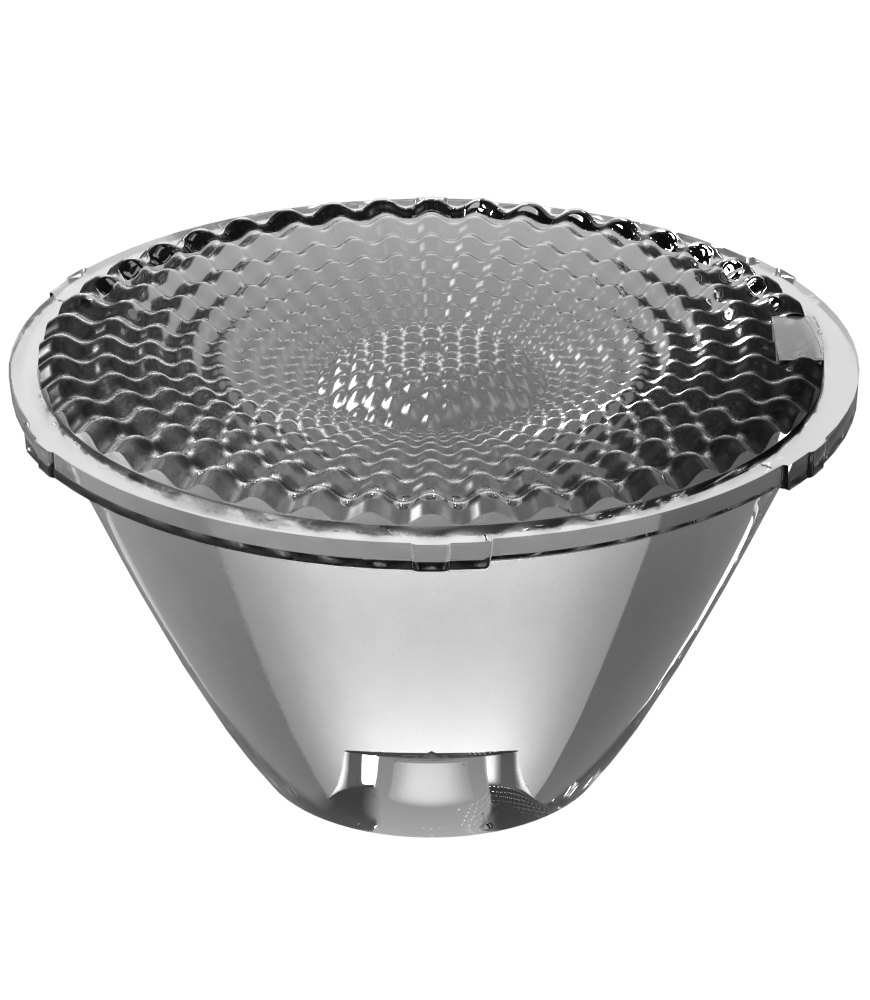

VEGA45W is a Ø 45mm COB-oriented collimator in PMMA.
VEGA45W is designed to provide a 25.3° medium beam with great tunable white capability. Being based on a non-chip imaging technology. it will also work with static white COB providing smooth and homogeneous beam with a great cut-off.

Discover also the PC version : the VEGA45W1
You can also buy our sets assembled with a black holder. SVEGA45W02 or clear. SVEGA45W00 .

A technical question? Consult the VEGA datasheet
Discover how to choose the right holder.

Refine your search:

LED Manufacturer

LED Type

LED Reference

Please choose LED Type first

Light Emitting Surface

mm diameter array

mm² surface

Dome

Yes

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer	LED Reference	FWHM 1	FWHM 2	FWTM 1	FWTM 2	LOR	Efficacy 1	CCI
BRIDGELUX	V3_HD_GEN_8	33.4		61.6		82.5	2.0	0.7
BRIDGELUX	V4_HD BXRH_30G0600_A_72	34.3		56.3		88.6	2.3
BRIDGELUX	VESTA 6 TW BXRV-TR-2765G-060-B-23	34.3		65.6		77.4	1.7	0.6
BRIDGELUX	V6 HD BXRH_40E1000_B_73	34.7		59.2		87.2	2.1
CITIZEN	CLU712	32.6		63.6		85.2	1.8
CITIZEN	CLU711	32.9		64.0		84.8	1.7
CITIZEN	CLU02J	33.0		68.9		83.3	1.6
CITIZEN	CLU710	33.2		64.1		85.4	1.8
CITIZEN	CLU7L3	33.3		61.1		82.2	2.0	0.5
CITIZEN	CLU701	33.4		59.0		87.5	2.0
CITIZEN	CLU7S3	33.7		61.7		80.4	1.9	0.5
CITIZEN	CLU7A3 Type-F	33.7		62.9		79.6	1.9	0.6
CITIZEN	CLU702	33.8		59.3		87.3	2.0
CITIZEN	CLU700	33.9		59.1		87.5	2.0
CITIZEN	CLU7R3	34.0		62.2		77.4	1.8	0.6
CITIZEN	CLU7B2	34.2		57.6		89.6	2.2
CITIZEN	CLU703 Type-F	34.2		64.6		78.1	1.7	0.5
CITIZEN	CLU7A2	34.2		62.5		79.9	1.8	0.5
CITIZEN	CLU713 Type-F	34.3		69.8		76.4	1.5	0.4
CITIZEN	CLU703	34.3		64.5		76.3	1.7	0.6
CITIZEN	CLU713	34.8		73.6		72.8	1.4	0.3
CITIZEN	CLU02Q Type-Y	34.9		73.8		75.4	1.4	0.4
CITIZEN	CLU02Q Type-F	35.0		74.7		80.1	1.5	0.2
CITIZEN	LCN-C01B2	35.1		74.8		72.0	1.3	2.5
CITIZEN	CLU03J	39.3		83.1		77.0	0.9
CITIZEN	CLU03Q Type-Y	42.4		89.8		67.8	0.9	0.3
CITIZEN	CLU03Q Type-F	43.4		91.1		67.9	0.8	0.4
CREE	CXA 1507	28.1	34.6	63.7	65.6	84.4	1.8
CREE	CXA 1520	31.6		65.1		84.4	1.8
CREE	XP-G4	32.6		61.5		83.0	2.0	0.6
CREE	XHP70.3 HI	32.8		61.5		87.4	2.1
CREE	XHP50.3 HI	33.0		63.6		82.9	1.9	0.5
CREE	XHP35.2 HI	33.7		62.1		76.4	1.8	0.5
CREE	XHP70.3	33.9		65.3		79.5	1.7	0.6
CREE	XHP50.3 HD	34.0		62.7		75.9	1.8	0.8
CREE	CXA 13XX	34.2		58.9		87.7	2.1
CREE	CXB 1310	34.2		63.9		77.8	1.7	0.5
CREE	CXB 1520	35.2		75.1		73.6	1.4	0.3
CREE	CXB 1507	38.1		64.0		84.6	1.8
LUMILEDS	LUXEON_CX_PLUS_COB_HD	32.5		66.7		84.4	1.7
LUMILEDS	LUXEON_CX_PLUS_CoB_HDM02F09	32.7		63.6		85.1	1.8
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS01H06	32.8		59.3		87.6	2.0
LUMILEDS	LUXEON COB 1202	33.0		72.5		84.4	1.8
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS04H09	33.0		68.2		84.3	1.7
LUMILEDS	LUXEON 7070	34.3		64.8		74.5	1.7	0.6
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS01H04	34.5		61.7		88.5	2.1
LUMINUS	CXM_4	31.9		60.3		88.2	2.2
LUMINUS	CXM_9	32.9		68.9		83.0	1.6
LUMINUS	SST-40	33.7		61.1		76.9	1.9	0.7
LUMINUS	CXM_3	33.9		61.8		77.3	1.9	0.6
LUMINUS	CXM_6	34.1		64.3		77.8	1.7	0.5
LUMINUS	SST-70	34.6		57.3		89.6	2.2
LUMINUS	SST_20_WxH	35.6		56.7		90.4	2.4
LUMINUS	SST_20_WxS	36.5		57.1		90.3	2.3
NICHIA	NVEWL016Z_V1	30.6		63.6		84.9	1.9
NICHIA	NJCWS024Z_V1	31.6		59.0		86.4	2.0
NICHIA	NTCWT012B_V3	32.5		59.4		87.5	2.1
NICHIA	NVNWS007Z_V1	32.9		58.6		88.0	2.1
NICHIA	NFCWL036B_V3	33.2		63.2		85.4	1.9
NICHIA	NVSW719AC	33.2		61.6		79.9	2.0	0.6
NICHIA	NJNWS012Z_V1MT	33.5		62.4		77.9	1.8	1.3
NICHIA	NFSWE11A	34.2		57.0		86.5	2.4
NICHIA	NTCWS024B_V3	34.2		65.6		76.6	1.6	0.5
NICHIA	NJCWL024Z_V1MT	34.3		65.8		75.6	1.6	0.7
NICHIA	NVSW519A	34.5		58.9		87.5	2.3
NICHIA	NVSW219F_V1	35.1		58.6		89.2	2.4
NICHIA	NV4L144AM	35.1		61.8		83.2	1.9
SEOUL	Z5M4	33.2		57.7		90.1	2.4
XICATO	XTM & XIM 9MM	34.5		71.9		74.6	1.5	1.0

View results

Compatible accessories:

Please select a unique LED reference

Download

Find the right product for your needs

Our range of standard collimators is the result of many years of experience in the market for custom optical components. It has developed naturally in the face of constantly changing market requirements: the search for the best possible compromise between quality, reliability and cost reduction. Our collimators can be adapted to different fields of application such as automotive, medical, general lighting fixtures and light indicators on domestic devices.

Thanks to a very wide range of products, we can meet most of the technical requirements and specifications for optical solutions.

Let us guide you through our search engine; enter a reference, a material, a brand or a type of LED, characteristics of size, diameter, zoom or color mixing requirements and find the optical part adapted to your needs among the selection that is proposed to you.

Optical solutions: the result of many years of experience

GAGGIONE leverages its extensive experience and resources to provide complete capabilities throughout the design process of custom parts and optical systems. The standard range of optics is the result of a long history in the field of custom optical components. It has grown in response to constantly changing market requirements and rapid time-to-market and continues to be one of the exciting activities that GAGGIONE is used to shape its customers’ light.
