Ref:

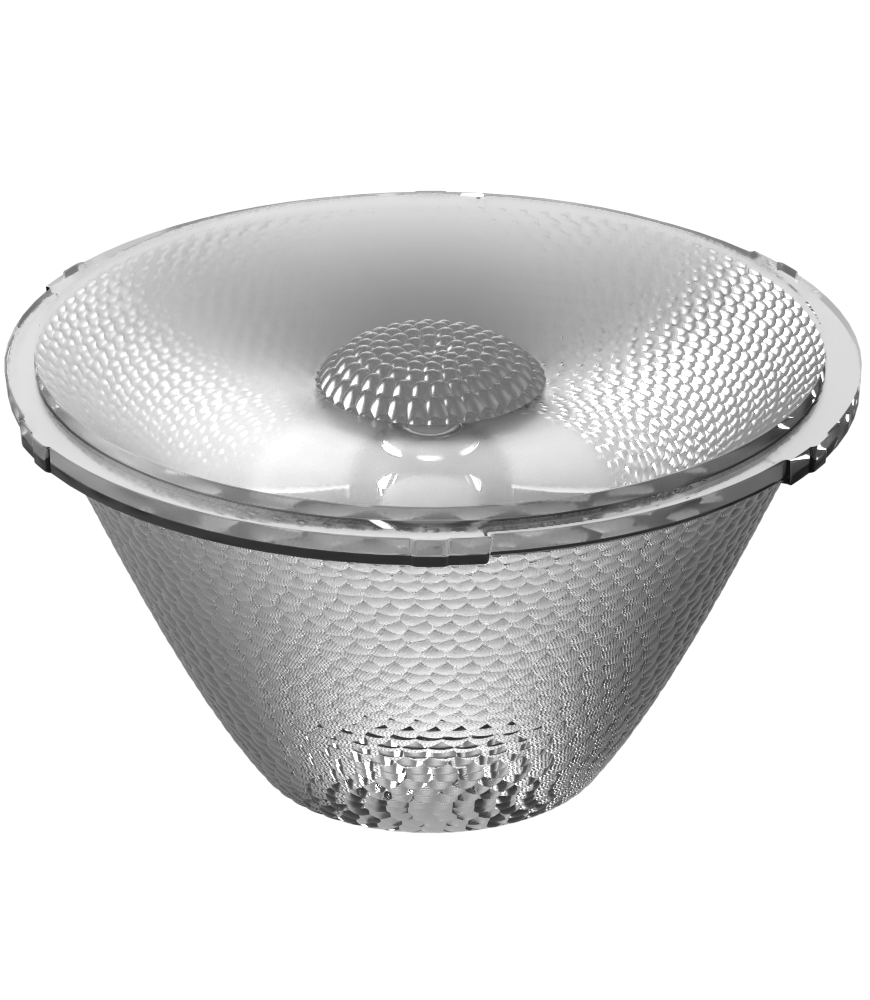

VEGA45V1

Very Large Collimator

45mm COB-oriented collimator in PC

More details :

VEGA45V1 is a Ø 45mm COB-oriented collimator in PC.
VEGA45V1 is designed to provide a very large beam with great tunable white capability. Being based on a non-chip imaging technology. it will also work with static white COB providing smooth and homogeneous beam with a great cut-off.

Discover also the PMMA version : the VEGA45V
A technical question? Consult the VEGA datasheet
Discover how to choose the right holder.

Refine your search:

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer LED Reference FWHM 1 FWHM 2 FWTM 1 FWTM 2 LOR Efficacy 1 Efficacy 2 CCI
BRIDGELUXV10 BXRE_30E1000_B_0346.187.980.60.9
BRIDGELUXV8 THRIVE Gen7 BXRE_40S0801_D_7246.484.382.11.0
BRIDGELUXV10 THRIVE Gen7 BXRE_40S1001_B_7347.494.780.00.9
BRIDGELUXV6 HD THRIVE BXRH_40S1001_B_7348.182.882.61.0
BRIDGELUXV6 HD THRIVE BXRH_40S1001_G_7348.182.882.71.1
BRIDGELUXV3_HD_GEN_852.883.188.01.10.9
BRIDGELUXVERO 10 SE BXRC_30E1000_C_7258.2117.079.00.6
CITIZENCLU71247.188.681.20.9
CITIZENCLU02847.891.880.10.8
CITIZENCLU70048.083.882.81.0
CITIZENCLU71048.087.981.20.9
CITIZENCLU71148.090.681.10.9
CITIZENCLU70248.685.182.61.0
CITIZENCLU70148.784.382.71.0
CITIZENCLU713 Type-F48.888.979.71.00.4
CITIZENCLU02J48.994.479.50.8
CITIZENCLU02Q Type-F48.994.782.80.90.3
CITIZENCLU7R349.083.383.51.1
CITIZENCLU71349.494.275.70.90.2
CITIZENCLU02Q Type-Y49.694.779.30.90.3
CITIZENCLU7S349.983.783.91.0
CITIZENCLU70350.083.676.81.00.6
CITIZENCLU7B250.483.484.01.0
CITIZENCLU703 Type-F50.784.582.61.00.6
CITIZENCLU7A250.881.985.11.10.7
CITIZENCLU7A3 Type-F52.384.084.11.00.9
CITIZENCLU7L353.182.983.81.00.9
CITIZENCLU03Q Type-Y62.0117.770.70.50.4
CITIZENCLU03Q Type-F63.2118.870.60.50.4
CREECXA 150745.588.880.70.9
CREECXA 152046.190.180.80.9
CREECXB 131046.684.082.71.0
CREECXB 152046.993.880.90.8
CREECXB 150747.191.280.60.9
CREECXA 13XX48.185.883.31.0
CREEXHP50.3 HD51.682.981.31.00.6
CREEXHP35.2 HI52.483.480.71.00.9
CREEXP-G454.784.089.01.00.7
LUMILEDSLUXEON_CX_PLUS_CoB_HDS04H0946.790.980.50.9
LUMILEDSLUXEON_CX_PLUS_COB_HD47.291.980.50.9
LUMILEDSLUXEON COB 120347.390.280.80.9
LUMILEDSLUXEON COB 120247.990.080.30.9
LUMILEDSLUXEON_CX_PLUS_CoB_HDM02F0948.089.881.10.9
LUMILEDSLUXEON COB 1202S48.785.482.11.0
LUMILEDSLUXEON_CX_PLUS_CoB_HDS01H0649.085.182.81.0
LUMILEDSLUXEON_CX_PLUS_CoB_HDS01H0449.484.383.41.0
LUMILEDSLUXEON 707050.784.380.11.00.7
LUMINUSCXM_647.386.282.61.0
LUMINUSCXM_447.581.684.31.1
LUMINUSCXM_948.896.178.90.8
LUMINUSCXM_349.384.684.71.1
LUMINUSSST-4052.082.081.21.00.7
NICHIANJCWS024Z_V146.485.281.91.0
NICHIANFCWL036B_V346.588.681.40.9
NICHIANTCWT012B_V348.183.582.81.0
NICHIANVEWL016Z_V148.289.980.70.9
NICHIANJCWS024Z48.889.680.51.0
NICHIANVNWS007Z_V148.884.282.91.0
NICHIANTCWS024B_V349.384.781.41.00.6
NICHIANJCWL024Z_V1MT50.084.880.11.00.7
NICHIANJNWS012Z_V1MT50.783.285.01.10.8
NICHIANVSW719AC54.484.685.11.00.8
XICATOXTM & XIM 9MM49.392.278.40.90.6
View results

Compatible accessories:

Please select a unique LED reference
