Ref:

VEGA45N

Narrow Collimator

45mm COB-oriented collimator in PMMA

More details :

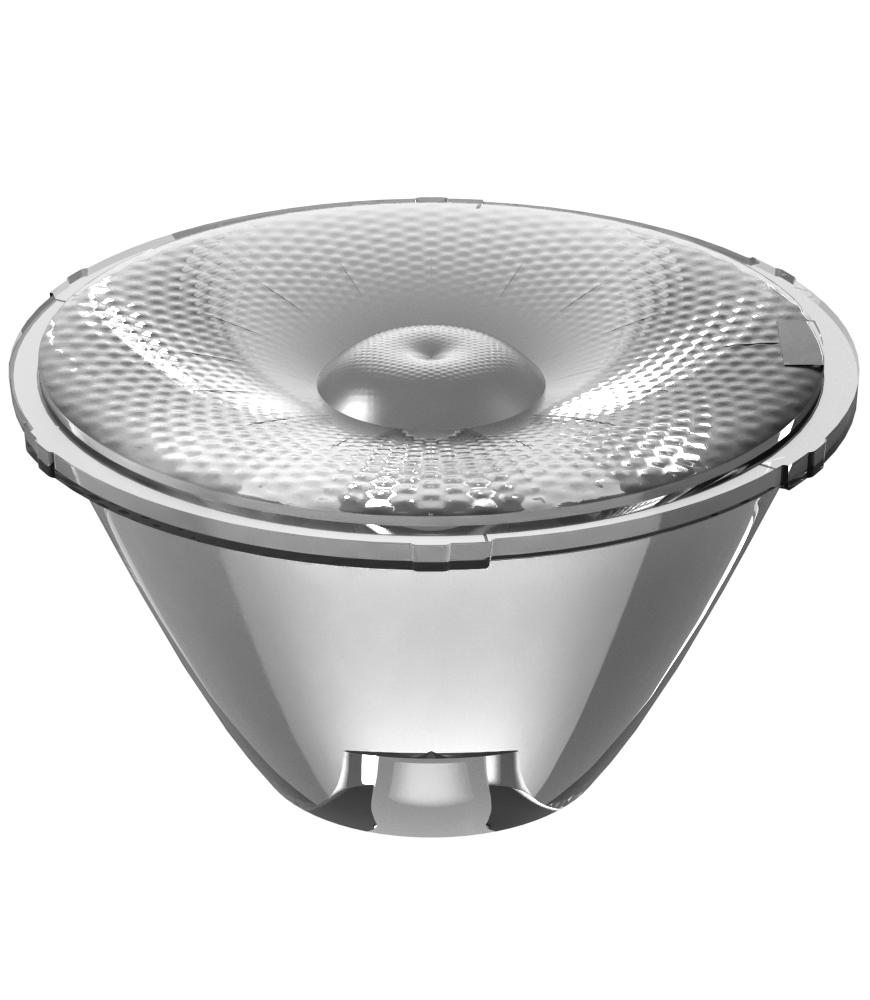

VEGA45N is a Ø 45mm COB-oriented collimator in PMMA.
VEGA45N is designed to provide a 8.7° narrow beam with limited tunable white capability. Being based on a non-chip imaging technology. it will work with static white COB providing smooth and homogeneous beam with a great cut-off.

Discover also the PC version : the VEGA45N1
You can also buy our sets assembled with a black holder. SVEGA45N02 or clear. SVEGA45N00 .

A technical question? Consult the VEGA datasheet
Discover how to choose the right holder.

Refine your search:

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer LED Reference FWHM 1 FWHM 2 FWTM 1 FWTM 2 LOR Efficacy 1 Efficacy 2 CCI
BRIDGELUXV3_HD_GEN_88.915.993.231.11.8
BRIDGELUXV4_HD BXRH_30G0600_A_729.417.392.126.8
BRIDGELUXV6 HD BXRH_40E1000_B_7312.622.191.714.6
BRIDGELUXVESTA 6 TW BXRV-TR-2765G-060-B-2313.423.689.613.14.0
CITIZENCLU7L36.912.888.347.56.0
CITIZENCLU7B27.714.592.638.9
CITIZENCLU7S38.715.790.532.54.5
CITIZENCLU7A29.617.589.724.84.9
CITIZENCLU7R39.917.787.624.24.8
CITIZENCLU7A3 Type-F11.419.789.219.20.7
CITIZENCLU70012.722.091.414.7
CITIZENCLU70212.922.891.713.3
CITIZENCLU70313.323.086.612.81.6
CITIZENCLU70113.622.391.713.4
CITIZENCLU703 Type-F14.924.786.911.11.6
CITIZENCLU71316.129.682.46.80.7
CITIZENCLU71116.328.691.07.4
CITIZENCLU71016.528.391.27.8
CITIZENCLU71216.629.191.37.6
CITIZENCLU02J18.331.690.55.6
CITIZENCLU713 Type-F19.731.986.16.32.5
CITIZENCLU02Q Type-Y19.834.085.65.40.8
CITIZENCLU02Q Type-F22.136.691.84.81.2
CITIZENCLU03Q Type-Y22.451.179.32.40.8
CITIZENCLU03Q Type-F23.154.579.52.21.1
CITIZENCLU03J25.251.486.42.0
CREEXP-G46.513.592.548.61.3
CREEXHP35.2 HI7.313.886.238.24.9
CREEXHP50.3 HI10.122.594.017.93.3
CREECXA 13XX11.020.591.717.7
CREEXHP50.3 HD11.218.985.319.33.4
CREECXB 131012.522.387.914.41.0
CREEXHP70.3 HI14.725.591.811.5
CREEXHP70.314.927.489.310.03.4
CREECXA 152015.328.190.97.8
CREECXA 150715.428.290.97.8
CREECXB 150717.029.790.97.3
CREECXB 152017.531.484.96.11.1
LUMILEDSLUXEON_CX_PLUS_CoB_HDS01H0410.218.692.021.8
LUMILEDSLUXEON_CX_PLUS_CoB_HDS01H0611.721.891.915.7
LUMILEDSLUXEON 707013.823.785.712.33.3
LUMILEDSLUXEON_CX_PLUS_CoB_HDM02F0914.428.091.28.6
LUMILEDSLUXEON COB 120217.529.891.07.0
LUMILEDSLUXEON_CX_PLUS_COB_HD18.331.291.06.2
LUMILEDSLUXEON_CX_PLUS_CoB_HDS04H0918.331.090.96.2
LUMINUSSST_20_WxH5.410.493.179.0
LUMINUSSST_20_WxS5.610.793.173.9
LUMINUSSST-406.712.886.147.31.4
LUMINUSCXM_38.215.686.931.90.7
LUMINUSSST-708.715.992.931.9
LUMINUSCXM_410.018.191.723.3
LUMINUSCXM_612.623.187.413.31.4
LUMINUSCXM_919.332.690.55.3
NICHIANFSWE11A3.88.387.5129.0
NICHIANVSW219F_V16.212.192.659.7
NICHIANVSW519A7.313.890.743.6
NICHIANVSW719AC7.313.791.844.92.4
NICHIANV4L144AM11.020.685.417.9
NICHIANJNWS012Z_V1MT11.721.388.716.32.0
NICHIANVNWS007Z_V112.121.691.915.8
NICHIANTCWT012B_V312.721.791.715.0
NICHIANTCWS024B_V313.024.186.612.02.8
NICHIANJCWS024Z_V114.725.491.310.6
NICHIANFCWL036B_V316.428.491.18.0
NICHIANVEWL016Z_V117.329.690.97.2
SEOULZ5M47.013.693.448.9
XICATOXTM & XIM 9MM17.930.984.86.52.1
