~20 x ~80 ° Elliptical beam Linear Collimator (263.4 mm x 24.1 mm)
7in1 Elliptical beam Linear PMMA collimator for 280 mm x 40 mm Louvre
More details :
GAGGIONE’s innovative glare-free family is here. High precision micro-structured and diamond-turned optics ensures discreet design, low surface brightness and state of the art color uniformity. POLLUX7X1E provides ~20 x 80° elliptical beam and is optimized for single or cluster CSPs, 2835, 3030 and 5050 mid-power LED packages.
POLLUX7X1E is ideal for wall grazing, wall washing, corridor/hall way and aisle lighting applications in Offices, Supermarkets, Hotels and for e.g Art galleries. We recommend to put 2pcs of LEDs side-by-side to maximize efficiency and lumen output.

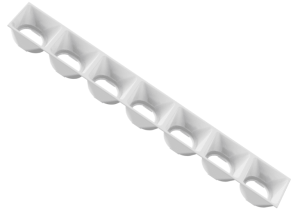

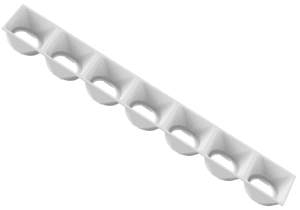

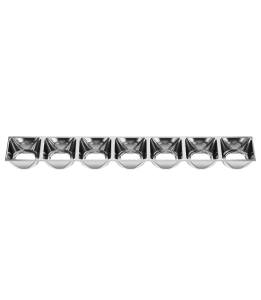

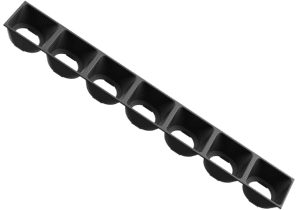

There are multiple snap-on louvre options available for POLLUX7X1* product family to make it easy to design luminaire around POLLUX7X1* family. You can choose between: Glossy Black, Matt Black, Glossy White and Matt White louvre options.
Standard PCBs are available from: Lumitronix, Tridonic, Osram, MST
See also POLLUX7X1 leaflet or access the datasheet
Refine your search:
Compatibility
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | Efficacy 1 | Efficacy 2 | CCI |
|---|
Compatible accessories:
Please select a unique LED reference
Find the right product for your needs
Our range of standard collimators is the result of many years of experience in the market for custom optical components. It has developed naturally in the face of constantly changing market requirements: the search for the best possible compromise between quality, reliability and cost reduction. Our collimators can be adapted to different fields of application such as automotive, medical, general lighting fixtures and light indicators on domestic devices.
Thanks to a very wide range of products, we can meet most of the technical requirements and specifications for optical solutions.
Let us guide you through our search engine; enter a reference, a material, a brand or a type of LED, characteristics of size, diameter, zoom or color mixing requirements and find the optical part adapted to your needs among the selection that is proposed to you.
Optical solutions: the result of many years of experience
GAGGIONE leverages its extensive experience and resources to provide complete capabilities throughout the design process of custom parts and optical systems. The standard range of optics is the result of a long history in the field of custom optical components. It has grown in response to constantly changing market requirements and rapid time-to-market and continues to be one of the exciting activities that GAGGIONE is used to shape its customers’ light.
