LLC59C

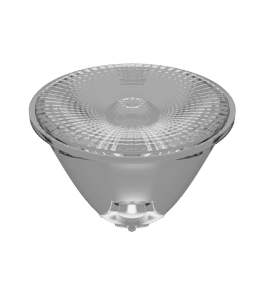

Color Collimator

Ø 45 mm color beam PMMA collimator without sprue.

More details :

LLC59C is a Ø 45 mm color beam PMMA collimator without sprue. LLC59C is designed to provide a 10° narrow beam with great color mixing capability. Its close field color mixing feature makes it ideal for RGBW wall washing applications. Being based on a non chip imaging technology. it will also work with single or quad chip white LEDs providing smooth and homogeneous beam with a great cut-off.
Discover all its specificities in the datasheet.

All of our PMMA based references can also be manufactured out of Polycarbonate (PC). Please contact us for more details.

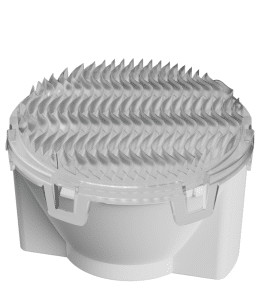

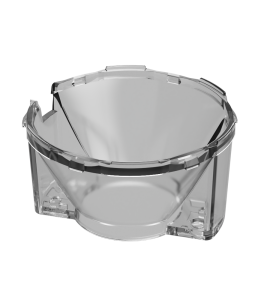

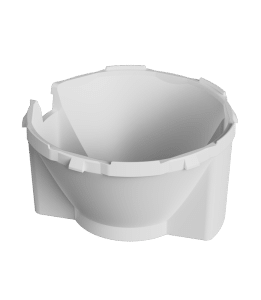

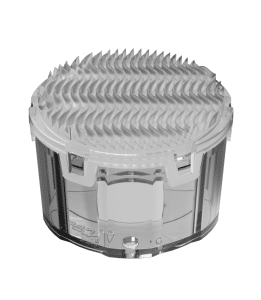

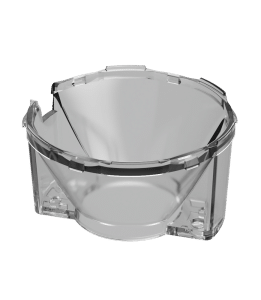

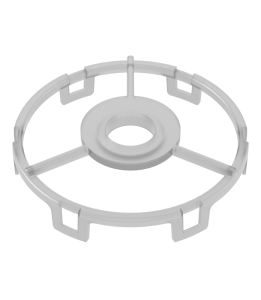

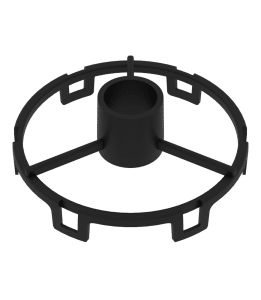

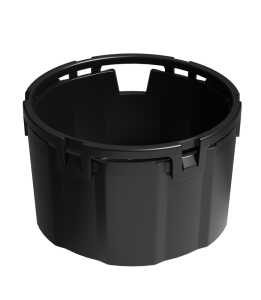

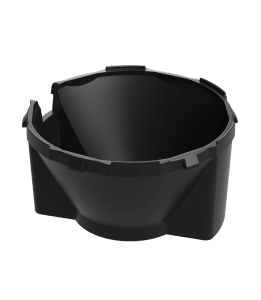

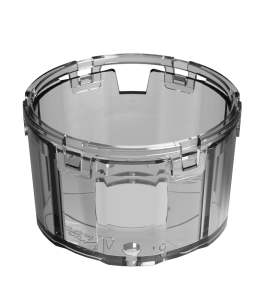

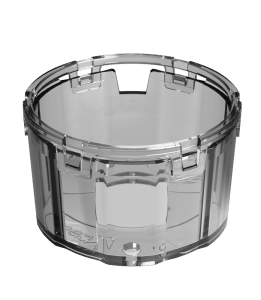

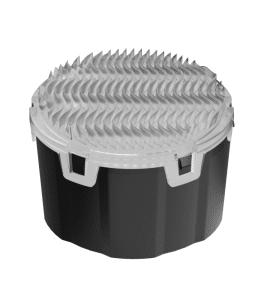

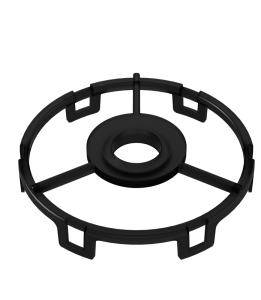

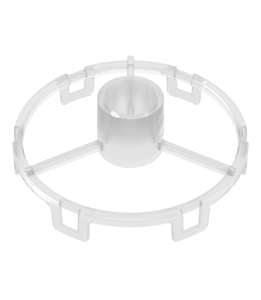

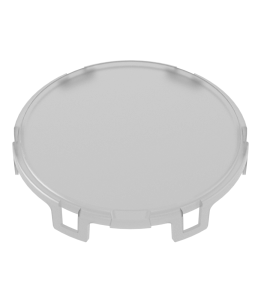

Discover how to choose the right holder.
If you pick a LED below. holder suggestions will appear.

Refine your search:

LED Manufacturer

LED Type

LED Reference

Please choose LED Type first

Light Emitting Surface

mm diameter array

mm² surface

Dome

Yes

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer	LED Reference	FWHM 1	FWTM 1	LOR	Efficacy 1	CCI
CREE	XQ-E HI	7.1	15.8	96.9	37.3
CREE	XP-P	7.6	16.4	86.6	32.5	1.7
CREE	XD16 Premium White	8.0	16.7	94.5	32.0	1.7
CREE	XP-E2	8.5	16.6	94.5	29.8
CREE	XP-G	9.2	17.6	94.8	27.3
CREE	XP-G2	9.3	17.8	95.5	26.7
CREE	XD16	9.5	18.6	94.3	22.9
CREE	XP-G4 HI	9.7	19.2	90.3	22.1	1.1
CREE	XPL-HI_post_PCN5155	9.8	19.1	90.4	22.9	0.6
CREE	XHP35 HI	9.9	19.2	96.3	23.2
CREE	XP-L HI	9.9	19.2	92.7	23.2	0.4
CREE	XP-G4	10.2	19.8	91.6	21.5	1.1
CREE	XT-E HE	10.3	20.3	94.1	19.8
CREE	XHP35.2 HI	10.3	19.9	87.2	21.1	0.5
CREE	XP-G2 HE	10.3	19.3	89.5	22.5	0.4
CREE	XM-L COLOR GEN 2 HIGH INTENSITY	10.4	19.9	93.3	21.4	6.9
CREE	XP-L	10.5	19.9	97.1	21.9
CREE	XM-L2	11.1	21.3	88.2	17.7	2.6
CREE	XP-L2	11.2	21.3	96.2	18.8
CREE	XHP50.3 HI	11.4	21.5	90.7	17.3	3.6
CREE	XM-L EASYWHITE	11.9	22.2	93.2	16.4
CREE	MCE COLOR	11.9	22.5	91.9	15.5
CREE	XM-L COLOR GEN 2 HIGH DENSITY	11.9	22.1	92.1	16.7	6.7
CREE	XE-G CLUSTER x4 RGBW	12.2	23.6	90.6	14.2	1.6
CREE	XHP50.3 HD	13.0	25.0	87.8	12.7	0.6
CREE	XHP50.2	13.2	25.7	92.9	11.9
CREE	XHP35.2 HD	14.0	27.4	91.6	10.0
CREE	XHP70	15.3	31.9	93.2	8.0
CREE	XHP70.3	15.9	30.3	89.7	8.5	1.9
CREE	XHP70.2	16.0	30.6	94.2	8.3
EDISON	EDISON_2FM004M601F03001	12.9	24.3	92.3	13.8	9.1
LED ENGIN	LZ4-01MNCA	10.8	21.0	94.5	18.1	9.6
LED ENGIN	LZ7-04M2PD	11.4	22.0		16.8	6.0
LED ENGIN	LZC_03MD07	18.1	34.5	92.4	6.2
LUMILEDS	LUXEON Z ES	9.2	18.1	93.7	25.6	1.4
LUMILEDS	LUXEON RUBIX CLUSTER x4 RGBW	11.0	20.5	91.4	18.8	1.1
LUMILEDS	LUXEON Z CLUSTER x4 TUNABLE WHITE	11.1	20.6	94.1	19.3	1.8
LUMILEDS	LUXEON M	11.3	20.4	96.0	18.3	0.9
LUMILEDS	LUXEON MZ	11.3	21.6	85.3	18.5
LUMILEDS	LUXEON Z CLUSTER x4 RGBW	11.7	21.6	93.0	17.5	12.3
LUMILEDS	LUXEON C CLUSTER x4 RGBW	12.8	24.4	94.9	13.4
LUMINUS	SST-12	8.5	17.5	90.7	29.4	3.1
LUMINUS	SFT-40	9.2	17.9	90.6	27.2	1.6
LUMINUS	SBM_40_SC	9.3	18.0	94.8	27.6	5.5
LUMINUS	SFT-70	10.1	19.2	90.5	23.1	1.5
LUMINUS	SST-40	10.4	20.3	89.2	19.9	1.7
LUMINUS	SST-70	11.6	22.0	89.3	17.0	1.6
NICHIA	NCSWE17AT	8.7	17.3	96.0	30.6
NICHIA	NVSW219CT-V2	8.9	18.1	90.3	25.7	1.3
NICHIA	NVSW719AC	9.4	18.8	88.8	23.2	1.3
NICHIA	NF2W757G_MT	10.0	19.4	94.9	23.5	3.7
NICHIA	NVSW319A	10.3	19.6	93.4	21.2
NICHIA	NV4WB35AM	10.9	21.1	87.4	17.0	1.1
NICHIA	NWSL229A	11.5	21.9	93.8	16.8
NICHIA	NVSL219C	11.7	23.6	92.0	14.6
NICHIA	E17A CLUSTER x4 RGBW	12.5	23.5	88.1	14.3	12.7
NICHIA	NV4L144AR	12.9	25.2	95.6	13.0	0.9
OSRAM	OSLON COMPACT CL LUW CEUP	6.9	15.5	94.1	40.7
OSRAM	OSLON BLACK FLAT LUW HWQP	7.1	15.8	85.5	39.6
OSRAM	OSLON BOOST HM KW CELMM1.TG	7.1	16.4	90.5	34.1	2.1
OSRAM	OSLON COMPACT CM LUW CEUN.CE	7.3	16.2	97.4	34.7
OSRAM	OSLON COMPACT PL KW CELNM2.TK	7.3	16.3	88.9	33.7	1.3
OSRAM	OSTAR PROJECTION COMPACT KW CSLNM1.TG	7.7	17.2	90.7	29.0	2.4
OSRAM	OSLON Boost HX KW CULPM1.TG	8.5	17.6	92.0	29.6
OSRAM	OSLON PURE 1010 GW VJLPE1 EM	8.6	17.6	89.2	28.6
OSRAM	OSLON SQUARE FLAT KW CSLPM2.PC	8.7	17.7	95.4	26.5
OSRAM	OSTAR STAGE LE RTDUW S2WN	9.3	17.9	96.6	27.8	4.8
OSRAM	OSLON SQUARE GW CSSRMU.CM	9.3	18.0	89.6	26.4
OSRAM	OSTAR STAGE LE RTDUW S2WM	9.4	18.2	95.2	27.0	5.7
OSRAM	OSLON SQUARE LCW CQAR	9.5	18.3	95.6	24.5
OSRAM	OSLON SQUARE GW CSSRM1.PC	9.6	18.3	94.6	24.1
OSRAM	OSCONIQ P3737 GW PUSRA1.EM	9.6	18.9	92.0	23.8
OSRAM	OSLON SQUARE GW CSSRM1.BM	9.6	19.0	89.6	22.6	1.0
OSRAM	OSTAR STAGE LE RTDUW S2W	9.8	18.3	96.3	25.1	5.4
OSRAM	OSLON SQUARE GW CSSRM3.PM	9.8	18.5	94.8	23.6
OSRAM	OSLON SQUARE GW CSSRM2.PM	9.9	18.6	96.4	23.7
OSRAM	OSCONIQ C 2424 GW PLLRA1.EM	10.0	19.1	90.5	23.2
OSRAM	OSLON SQUARE GW CSSRM1.EC	10.2	19.8	96.2	21.4
OSRAM	OSCONIQ P3737 GW PULTA1.CM	10.7	20.2	89.7	20.3
OSRAM	OSCONIQ P3737 GW PUSTA1.PM	10.9	20.6	89.6	19.0
OSRAM	PURE 1010 RGBW CLUSTER x4	11.4	21.4	88.3	17.7	12.5
OSRAM	OSTAR STAGE LE RTDUW S2WP	11.4	21.5	91.5	17.9	5.8
OSRAM	PURE 1010 TUNABLE CLUSTER x4	11.9	22.5	94.4	15.9
OSRAM	DURIS P10	12.9	24.7	94.0	13.0
OSRAM	DURIS S8 P9LT32.PM	13.3	25.5	91.4	12.2
PLESSEY	PLW7070GA	13.4	26.4	92.2	11.1
PROLIGHT OPTO	PBEE_40FTE	10.1	19.5	94.9	21.8	4.9
PROLIGHT OPTO	PQ2A CLUSTER x4 RGBW	12.1	23.2	90.4	14.9	12.6
SEOUL	SPF05F0A	10.2	19.7	92.8	21.9	4.2
SEOUL	SPF05F0B	10.8	20.7	91.7	19.5	4.8
