Ref:

LLC25W1

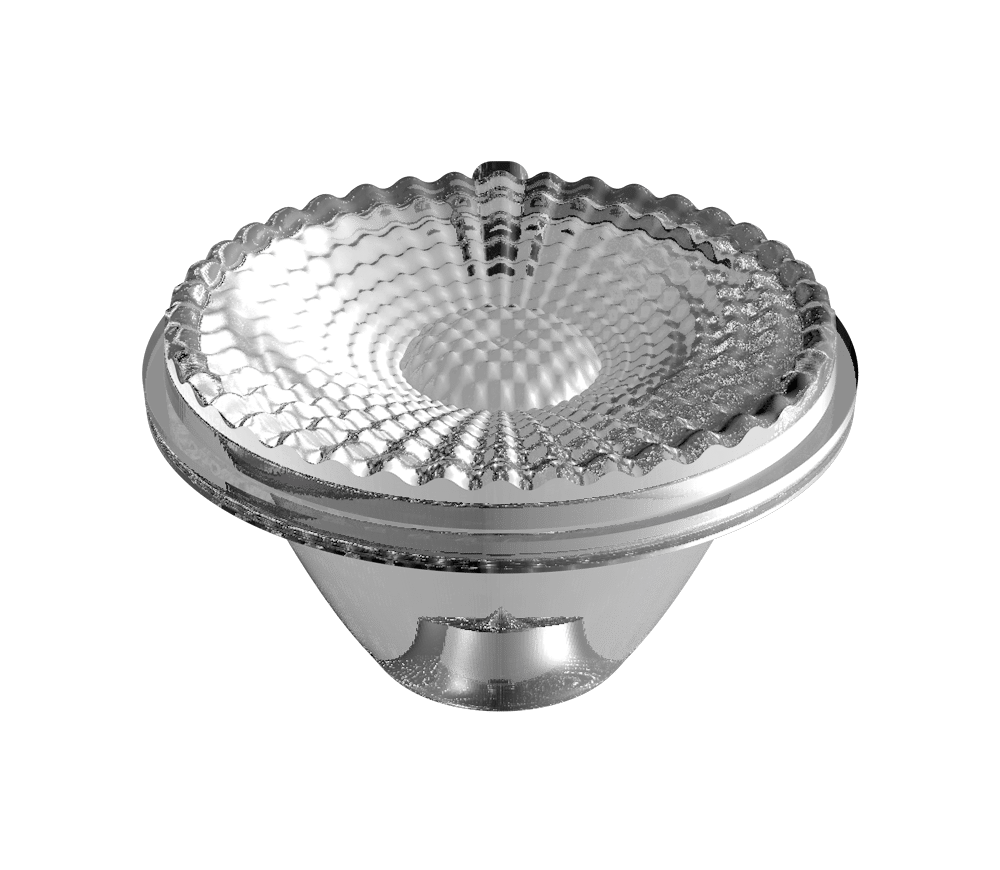

Wide Collimator

Ø 32 mm wide beam PC collimator.

More details :

LLC25W1 is a Ø 32 mm wide beam PC collimator. LLC25W1 is the new wide version combines 30° beam angle with very homogenous color mixing for RGBW and tunable white applications with non chip imaging patented technology.
All of our PC based references can also be manufactured out of PMMA. Please contact us for more details.
Discover how to choose the right holder.
If you pick a LED below. holder suggestions will appear.

Refine your search:

LED Manufacturer

LED Type

LED Reference

Please choose LED Type first

Light Emitting Surface

mm diameter array

mm² surface

Dome

Yes

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer	LED Reference	FWHM 1	FWTM 1	LOR	Efficacy 1	CCI
BRIDGELUX	V6 HD BXRH_40E1000_B_73	36.6	72.7	68.2	1.2
BRIDGELUX	VESTA 6 TW BXRV-TR-2765G-060-B-23	37.4	75.7	70.1	1.2	0.9
BRIDGELUX	V3_HD_GEN_8	38.2	71.2	70.2	1.3	1.6
BRIDGELUX	VESTA 9 DTW BXRV-DR-1830-H-1000-A-13	40.5	89.1	66.9	0.9	2.1
CITIZEN	CLU703 Type-F	37.3	74.8	66.9	1.1	1.0
CITIZEN	CLU7L3	37.4	71.6	65.8	1.2	1.5
CITIZEN	CLU7S3	37.5	72.5	61.0	1.1	1.2
CITIZEN	CLU700	37.8	71.6	75.1	1.2
CITIZEN	CLU702	37.8	75.6	71.1	1.2	0.8
CITIZEN	CLU711	37.9	78.1	71.8	1.1
CITIZEN	CLU7R3	38.2	74.3	64.0	1.1	1.2
CITIZEN	CLU7A2	38.2	70.5	63.5	1.1	1.2
CITIZEN	CLU712	38.3	78.5	72.2	1.1
CITIZEN	CLU703	38.3	76.3	65.0	1.1	1.3
CITIZEN	CLU7A3 Type-F	38.5	72.7	68.6	1.2	1.5
CITIZEN	CLU02J	39.2	83.9	70.5	0.9
CITIZEN	CLU713 Type-F	40.2	86.5	63.5	0.9	0.5
CITIZEN	LCN-C01B2	40.8	84.9	62.6	0.8	2.6
CITIZEN	CLU701	41.6	72.7	75.2	1.2
CITIZEN	CLU710	70.3	78.3	72.4	1.1
CREE	XP-G3	35.4	68.3	74.8	1.5
CREE	XP-E2	35.9	69.1	67.7	1.3	1.1
CREE	XP-L HI	36.3	68.8	72.6	1.4
CREE	XP-P	36.3	69.1	67.8	1.4	1.3
CREE	CXB 1507	36.5	80.6	71.5	1.1
CREE	CXB 1520	36.5	80.1	71.6	1.0
CREE	XQ-E HI	36.7	70.3	68.1	1.3
CREE	XD16 Premium White	36.7	69.1	72.5	1.3	1.3
CREE	XP-G4	37.0	70.1	68.4	1.3	1.0
CREE	XP-G4 HI	37.1	70.1		1.3	1.1
CREE	XM-L COLOR GEN 2 HIGH DENSITY	37.5	69.6	71.6	1.3	3.8
CREE	XM-L COLOR GEN 2 HIGH INTENSITY	37.7	70.5	68.8	1.3	4.6
CREE	XP-G2 HE	37.8	70.7	67.7	1.3	1.0
CREE	XPL-HI_post_PCN5155	37.9	70.8	66.3	1.2	1.5
CREE	XHP35.2 HD	37.9	70.3	68.7	1.2	1.0
CREE	CXA 1520	38.0	80.3	71.5	1.1
CREE	XHP35 HI	38.0	71.0	70.3	1.3
CREE	XM-L2	38.0	71.0	66.5	1.2	1.6
CREE	XHP35.2 HI	38.1	71.0	66.5	1.2	1.1
CREE	XHP50.3 HD	38.1	71.1	68.2	1.2	1.7
CREE	XE-G CLUSTER x4 RGBW	38.1	72.1	70.9	1.2	6.1
CREE	XQ-E HI CLUSTER x4 RGBW	38.3	70.3	67.7	1.2	3.7
CREE	XHP50.3 HI	38.4	71.9	68.5	1.2	1.3
CREE	XHP70.3 HI	38.6	74.2	67.3	1.1	1.8
CREE	XHP70.3	38.9	77.5	65.8	1.0	1.3
CREE	CXB 1310	39.2	73.0	75.7	1.2
CREE	CXA 13XX	40.8	71.7	75.4	1.2
CREE	CXA 1507	41.1	78.8	71.7	1.0
EDISON	EDISON_2FM004M601F03001	38.1	71.0	69.9	1.2	4.4
LED ENGIN	LZ4-01MNCA	38.0	70.4	69.0	1.2	3.0
LUMILEDS	LUXEON Z ES	36.9	68.2	69.7	1.3	1.0
LUMILEDS	LUXEON Z CLUSTER x4 TUNABLE WHITE	37.7	69.1	68.5	1.3	2.7
LUMILEDS	LUXEON Z CLUSTER x4 RGBW	38.0	69.8	70.4	1.3	6.0
LUMILEDS	LUXEON_CX_PLUS_CoB_HDM02F09	38.1	77.2	72.1	1.1
LUMILEDS	LUXEON M	38.2	72.0	66.9	1.1	1.1
LUMILEDS	LUXEON COB 1202	38.3	78.7	72.1	1.0
LUMILEDS	LUXEON CZ CLUSTER x4 RGBW	38.4	73.1	65.5	1.1
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS01H06	38.6	70.6	75.4	1.2
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS04H09	38.8	83.1	71.2	1.0
LUMILEDS	LUXEON RUBIX CLUSTER x4 RGBW	38.8	71.7	68.1	1.2	5.4
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS01H04	39.9	70.4	76.7	1.2
LUMILEDS	LUXEON_CX_PLUS_COB_HD	57.5	80.0	71.1	1.0
LUMINUS	SST-12	36.1	69.8	68.9	1.4	1.2
LUMINUS	SFT-40	36.3	68.2	70.5	1.4	1.4
LUMINUS	SBM_40_SC	37.0	69.3	68.7	1.3	6.0
LUMINUS	CXM_4	37.4	71.8	70.2	1.3	1.0
LUMINUS	SFT-70	37.4	69.3	68.8	1.3	1.5
LUMINUS	SST-40	37.4	69.4	69.5	1.3	1.1
LUMINUS	CXM_3	38.0	69.6	70.0	1.2	1.2
LUMINUS	SST-70	38.0	70.3	69.5	1.2	1.3
LUMINUS	CXM_6	38.3	74.7	74.1	1.2
LUMINUS	SST_20_WxS	41.1	68.5	79.6	1.4
LUMINUS	SST_20_WxH	41.2	70.0	79.7	1.4
LUMINUS	CXM_9	44.4	86.7	70.1	0.9
NICHIA	NVEWL016Z_V1	34.4	78.3	72.1	1.1
NICHIA	NJCWS024Z_V1	35.4	75.8	74.1	1.2
NICHIA	NVSW219CT-V2	36.3	69.4	67.4	1.3	1.1
NICHIA	NV4WB35AM	36.6	68.6	75.7	1.5
NICHIA	NCSWE17AT	36.8	68.0	67.8	1.3	1.5
NICHIA	NVSW719AC	36.9	69.7	66.0	1.3	1.4
NICHIA	NJNWS012Z_V1MT	37.7	74.3	67.8	1.2	2.0
NICHIA	NTCWT012B_V3	37.8	72.3	75.6	1.3
NICHIA	E17A CLUSTER x4 RGBW	38.4	71.5	66.7	1.2	5.3
NICHIA	E17A CLUSTER x4 TW	38.5	73.2	66.3	1.1	1.7
NICHIA	NTCWS024B_V3	38.6	74.1	74.4	1.2
NICHIA	NVNWS007Z_V1	38.7	73.3	75.6	1.2
NICHIA	NV4L144AR	38.9	74.0	67.8	1.2	1.3
NICHIA	NFSWE11A	39.6	68.7	75.8	1.4
NICHIA	NVSW519A	41.0	70.6	77.6	1.4
NICHIA	NVSW219F_V1	42.3	71.3	79.0	1.4
NICHIA	NFCWL036B_V3	50.6	76.7	72.5	1.1
OSRAM	OSLON Boost HX KW CULPM1.TG	33.2	66.1	75.1	1.6
OSRAM	OSLON SQUARE GW CSSRMU.CM	33.6	67.2	74.7	1.6
OSRAM	OSCONIQ C 2424 GW PLLRA1.EM	34.0	66.2	75.9	1.6
OSRAM	OSCONIQ P3737 GW PUSRA1.EM	34.7	67.7	76.1	1.6
OSRAM	OSLON BOOST HM KW CELMM1.TG	34.8	66.7	70.4	1.5	1.7
OSRAM	OSLON COMPACT PL KW CELNM2.TK	35.2	67.6	70.2	1.4	1.9
OSRAM	OSTAR PROJECTION COMPACT KW CSLNM1.TG	35.3	68.0	69.4	1.3	1.8
OSRAM	OSLON COMPACT CM LUW CEUN.CE	35.4	68.2	70.5	1.4	1.7
OSRAM	OSCONIQ P3737 GW PULTA1.CM	35.5	67.6	75.7	1.5
OSRAM	OSLON BLACK FLAT LUW HWQP	35.7	67.9	68.2	1.4
OSRAM	OSLON COMPACT CL LUW CEUP	36.0	69.0	68.5	1.4
OSRAM	OSCONIQ P3737 GW PUSTA1.PM	36.1	68.9	75.9	1.5
OSRAM	OSTAR STAGE LE CWUW S2W	36.7	69.8	67.5	1.3	2.7
OSRAM	OSLON SQUARE GW CSSRM1.BM	36.7	70.4	67.8	1.3	1.1
OSRAM	OSTAR STAGE LE RTDUW S2WN	37.5	70.5	68.4	1.3	3.5
OSRAM	OSTAR STAGE LE RTDUW S2WP	37.6	70.6	69.0	1.3	3.9
OSRAM	PURE 1010 RGBW CLUSTER x4	38.1	69.6	66.8	1.3	4.1
PROLIGHT OPTO	PBEE_40FTE	37.2	70.4	69.2	1.3	4.0
PROLIGHT OPTO	PQ2A CLUSTER x4 RGBW	39.2	72.7	68.3	1.2	4.1
SEOUL	SPF05F0A	37.2	70.5	69.5	1.3	3.3
SEOUL	SPF05F0B	37.4	70.3	68.1	1.3	3.9
SEOUL	Z5M4	39.6	71.4	79.6	1.4
XICATO	XTM & XIM 9MM	39.1	84.6	65.1	0.9	1.8
