Ref:

LLC25V1

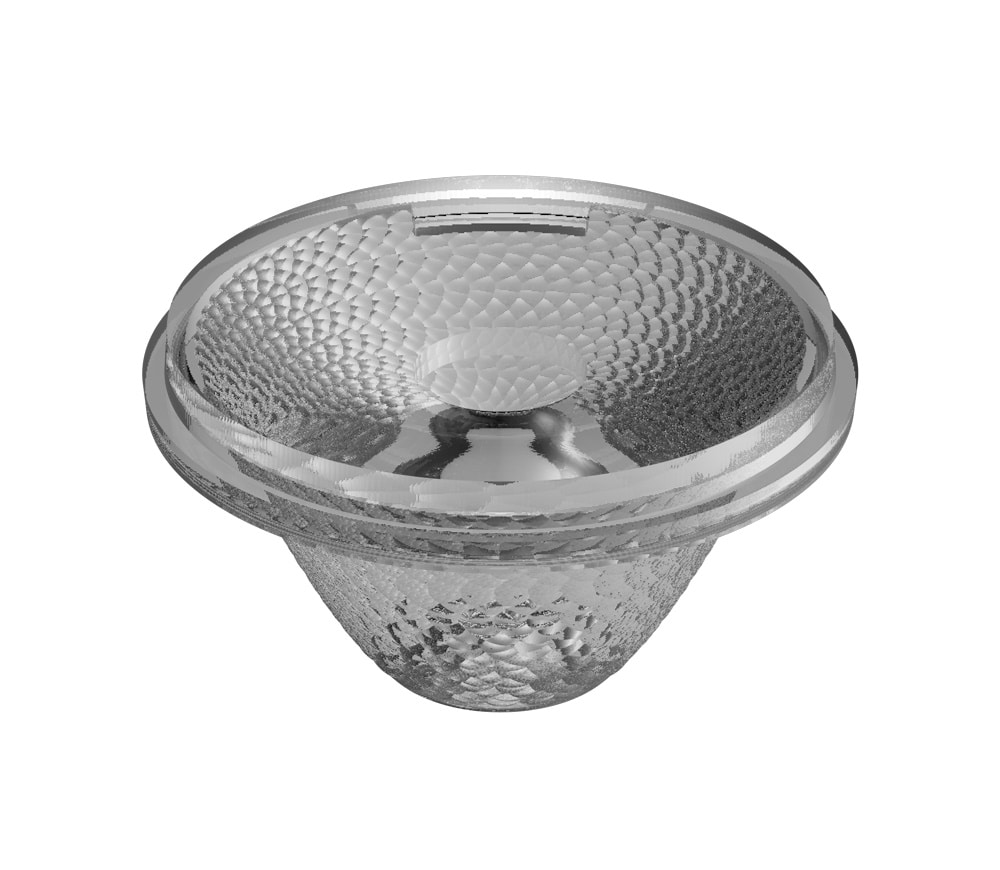

Very Large Collimator

Ø 32 mm very large beam PC collimator.

More details :

LLC25V1 is a Ø 32 mm very large beam PC collimator. LLC25V1 is applicable for downlight with 55° beam angle. it is capable of both RGBW and White color mixing.
All of our PC based references can also be manufactured out of PMMA. Please contact us for more details.
Discover how to choose the right holder.
If you pick a LED below. holder suggestions will appear.

Refine your search:

LED Manufacturer

LED Type

LED Reference

Please choose LED Type first

Light Emitting Surface

mm diameter array

mm² surface

Dome

Yes

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer	LED Reference	FWHM 1	FWTM 1	LOR	Efficacy 1	CCI
BRIDGELUX	VESTA 9 DTW BXRV-DR-1830-H-1000-A-13	52.7	101.5	78.2	0.8	1.2
BRIDGELUX	VESTA 6 TW BXRV-TR-2765G-060-B-23	55.1	86.3	79.4	0.9	0.9
BRIDGELUX	V6 HD BXRH_40E1000_B_73	55.5	84.8	76.7	0.8
BRIDGELUX	V4_HD BXRH_30G0600_A_72	55.8	81.1	83.4	1.0
BRIDGELUX	V3_HD_GEN_8	59.3	85.3	77.5	0.8	1.1
CITIZEN	CLU711	53.2	86.9	80.7	0.9
CITIZEN	CLU710	53.8	87.3	80.1	0.9
CITIZEN	CLU02J	54.2	101.0	79.4	0.8
CITIZEN	CLU712	54.3	86.8	80.2	0.9
CITIZEN	CLU700	54.4	113.0	81.6	0.9
CITIZEN	CLU701	55.0	85.2	81.4	0.9
CITIZEN	LCN-C01B2	55.5	92.8	73.0	0.7	1.8
CITIZEN	CLU713 Type-F	55.5	92.9	73.4	0.7	0.5
CITIZEN	CLU702	55.6	86.8	79.6	0.8	0.5
CITIZEN	CLU7S3	55.8	82.5	70.1	0.8	0.6
CITIZEN	CLU7L3	56.2	83.2	75.7	0.9	1.0
CITIZEN	CLU7R3	56.3	84.0	74.1	0.8	0.5
CITIZEN	CLU703 Type-F	57.1	87.8	73.4	0.7	0.8
CITIZEN	CLU7A3 Type-F	59.4	86.6	75.7	0.7	1.2
CITIZEN	CLU7A2	59.5	85.8	69.2	0.7	0.8
CREE	CXB 1507	49.4	86.1	79.7	0.9
CREE	CXA 1520	50.2	86.0	80.9	0.9
CREE	CXA 1507	50.4	84.4	80.9	0.9
CREE	CXB 1520	51.3	87.2	80.8	0.9
CREE	CXB 1310	53.2	84.0	81.0	0.9
CREE	CXA 13XX	54.0	83.0	82.1	1.0
CREE	XQ-E HI CLUSTER x4 RGBW	58.5	85.1	75.3	0.8	8.9
CREE	XP-G3	58.9	88.3	82.6	0.8
CREE	XHP70.3	59.0	90.9	71.9	0.7	0.9
CREE	XHP70.3 HI	59.5	87.9	75.1	0.7	1.3
CREE	XHP50.3 HD	60.3	87.8	73.8	0.7	1.0
CREE	XP-G4	60.5	84.7	75.5	0.7	1.1
CREE	XHP35.2 HD	61.0	87.6	74.1	0.7	1.0
CREE	XHP35.2 HI	61.1	87.3	72.5	0.7	1.1
CREE	XHP50.3 HI	61.1	87.8	74.3	0.7	1.9
CREE	XE-G CLUSTER x4 RGBW	61.3	89.6	74.9	0.7	8.4
CREE	XPL-HI_post_PCN5155	61.4	88.1	73.2	0.7	1.7
CREE	XQ-E HI	61.6	87.7	74.0	0.7
CREE	XHP35 HI	61.6	87.6	76.5	0.7
CREE	XM-L COLOR GEN 2 HIGH INTENSITY	61.6	87.8	75.2	0.7	7.8
CREE	XM-L COLOR GEN 2 HIGH DENSITY	61.7	87.0	76.5	0.7	9.2
CREE	XM-L2	61.7	88.7	73.7	0.7	1.6
CREE	XP-G4 HI	61.8	88.2	73.3	0.7	1.4
CREE	XP-L HI	61.9	87.4	77.2	0.7
CREE	XP-G2 HE	62.0	88.1	74.5	0.7	1.0
CREE	XP-P	62.1	86.4	74.3	0.7	1.5
CREE	XP-E2	62.1	87.4	74.1	0.7	1.5
CREE	XD16 Premium White	62.4	88.2	76.4	0.7	1.3
EDISON	EDISON_2FM004M601F03001	61.6	89.3	75.2	0.7	8.3
LED ENGIN	LZ4-01MNCA	58.4	84.4	76.0	0.8	6.0
LUMILEDS	LUXEON_CX_PLUS_CoB_HDM02F09	53.2	87.5	80.6	0.8
LUMILEDS	LUXEON_CX_PLUS_COB_HD	54.2	88.6	80.0	0.8
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS04H09	54.7	88.7	80.0	0.8
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS01H06	55.8	83.5	81.7	0.9
LUMILEDS	LUXEON COB 1202	56.0	88.8	78.9	0.8
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS01H04	58.8	83.4	83.0	0.9
LUMILEDS	LUXEON CZ CLUSTER x4 RGBW	58.8	86.1	74.6	0.7
LUMILEDS	LUXEON Z ES	59.8	83.8	74.9	0.7	1.3
LUMILEDS	LUXEON M	60.1	88.3	71.8	0.7	0.9
LUMILEDS	LUXEON Z CLUSTER x4 TUNABLE WHITE	60.1	85.6	74.3	0.7	1.4
LUMILEDS	LUXEON Z CLUSTER x4 RGBW	61.3	87.0	75.6	0.7	10.3
LUMILEDS	LUXEON RUBIX CLUSTER x4 RGBW	61.4	86.9	76.0	0.7	8.2
LUMINUS	CXM_6	54.2	83.1	81.1	0.9
LUMINUS	CXM_9	55.2	102.9	78.6	0.7
LUMINUS	CXM_4	55.5	84.2	80.1	0.9	0.8
LUMINUS	SST_20_WxS	58.6	82.5	85.2	0.9
LUMINUS	SST_20_WxH	58.8	83.2	84.8	0.9
LUMINUS	CXM_3	59.0	84.0	76.6	0.8	0.7
LUMINUS	SFT-40	60.6	84.9	75.6	0.7	1.5
LUMINUS	SFT-70	61.1	86.0	73.6	0.7	1.5
LUMINUS	SBM_40_SC	61.2	85.9	73.8	0.7	8.8
LUMINUS	SST-70	61.8	88.3	74.4	0.7	1.1
LUMINUS	SST-40	61.9	88.4	72.6	0.7	1.1
LUMINUS	SST-12	62.5	88.1	74.6	0.7	1.6
NICHIA	NJCWS024Z_V1	50.9	83.5	79.9	0.9
NICHIA	NVEWL016Z_V1	50.9	85.7	79.5	0.9
NICHIA	NFCWL036B_V3	52.3	88.0	79.5	0.9
NICHIA	NTCWT012B_V3	52.7	82.6	81.8	0.9
NICHIA	NVNWS007Z_V1	53.4	84.1	81.4	1.0
NICHIA	NTCWS024B_V3	55.6	83.6	80.8	0.9
NICHIA	NVSW519A	56.6	82.8	83.0	0.9
NICHIA	NVSW219F_V1	57.0	79.8	84.6	1.0
NICHIA	NV4WB35AM	57.3	85.4	83.8	0.9
NICHIA	NJNWS012Z_V1MT	57.3	86.5	76.3	0.8	2.1
NICHIA	E17A CLUSTER x4 TW	58.2	85.9	76.0	0.8	1.3
NICHIA	E17A CLUSTER x4 RGBW	59.4	85.9	73.8	0.7	9.3
NICHIA	NFSWE11A	60.5	83.1	80.8	0.9
NICHIA	NCSWE17AT	60.5	84.5	73.7	0.7	1.7
NICHIA	NV4L144AR	60.7	90.4	74.8	0.7	1.1
NICHIA	NVSW719AC	61.5	87.0	72.8	0.7	1.3
NICHIA	NVSW219CT-V2	62.1	88.5	73.6	0.7	1.1
OSRAM	OSCONIQ P3737 GW PULTA1.CM	56.7	83.3	82.6	0.9
OSRAM	OSCONIQ C 2424 GW PLLRA1.EM	57.9	84.4	83.4	0.9
OSRAM	OSCONIQ P3737 GW PUSRA1.EM	58.3	86.2	82.6	0.8
OSRAM	OSCONIQ P3737 GW PUSTA1.PM	58.3	87.2	83.2	0.8
OSRAM	PURE 1010 RGBW CLUSTER x4	58.7	83.6	73.3	0.7	7.3
OSRAM	OSLON Boost HX KW CULPM1.TG	59.2	86.9	82.0	0.8
OSRAM	OSLON BOOST HM KW CELMM1.TG	59.3	84.0	74.8	0.8	2.0
OSRAM	OSTAR STAGE LE RTDUW S2WP	60.1	85.5	76.2	0.8	7.8
OSRAM	OSLON COMPACT CM LUW CEUN.CE	60.2	85.0	76.2	0.8	1.9
OSRAM	OSLON SQUARE GW CSSRMU.CM	60.5	88.6	80.4	0.8
OSRAM	OSLON BLACK FLAT LUW HWQP	60.6	85.6	75.8	0.8
OSRAM	OSTAR STAGE LE CWUW S2W	61.1	86.0	75.1	0.7	3.1
OSRAM	OSTAR STAGE LE RTDUW S2WN	61.2	86.1	75.9	0.7	7.7
OSRAM	OSLON COMPACT PL KW CELNM2.TK	61.5	86.5	74.2	0.7	2.3
OSRAM	OSTAR PROJECTION COMPACT KW CSLNM1.TG	61.7	87.7	73.5	0.7	2.1
OSRAM	OSLON COMPACT CL LUW CEUP	61.8	86.6	74.5	0.7
OSRAM	OSLON SQUARE GW CSSRM1.BM	62.7	88.9	73.2	0.7	1.3
PROLIGHT OPTO	PBEE_40FTE	61.3	86.2	76.0	0.7	8.4
PROLIGHT OPTO	PQ2A CLUSTER x4 RGBW	61.3	89.3	74.6	0.7	9.0
SEOUL	SPF05F0B	60.1	85.4	76.1	0.7	6.6
SEOUL	SPF05F0A	60.7	86.4	76.8	0.7	6.5
SEOUL	Z5M4	63.3	83.8	84.5	0.9
XICATO	XTM & XIM 9MM	55.3	90.7	74.0	0.7	0.6

View results
