LLC25N1

Narrow Collimator

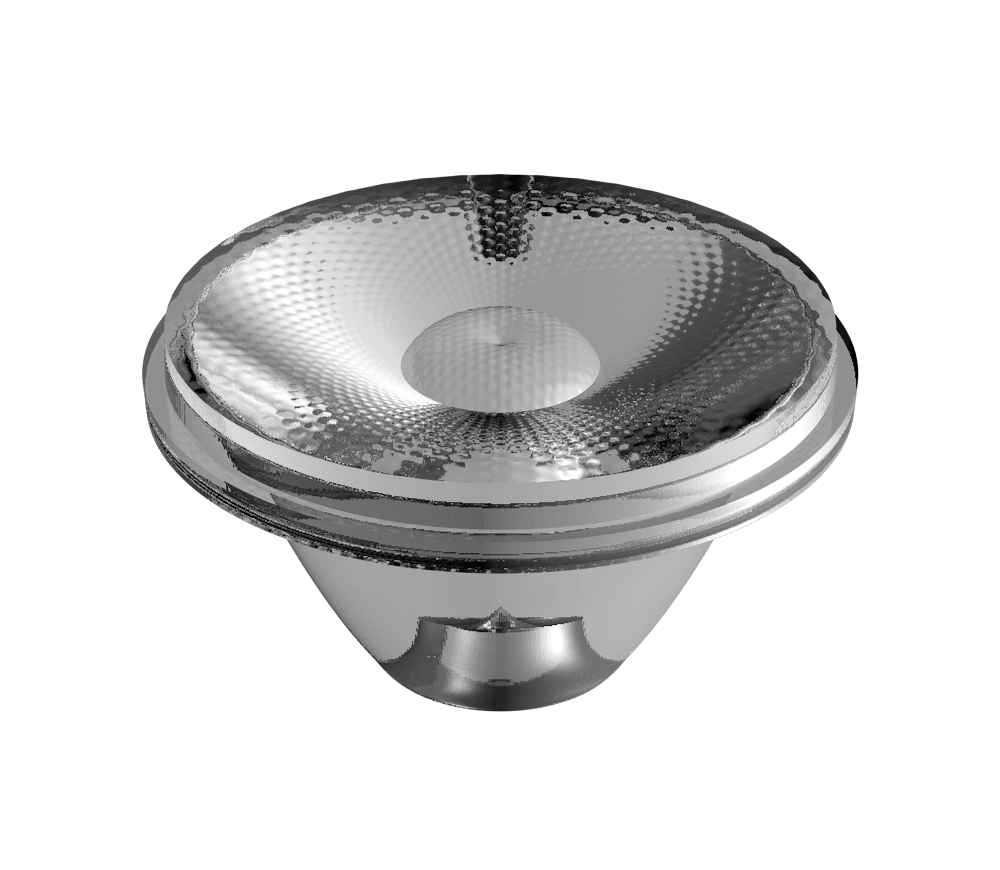

Ø 32 mm narrow beam PC collimator.

More details :

LLC25N1 is a Ø 32 mm narrow beam PC collimator. LLC25N1 is based on patented color mixing technology. It allows a unmatched compromise between narrow beam angle and mixing homogeneity. It applies for both RGBW and tunable white applications.
All of our PMMA based references can also be manufactured out of Polycarbonate (PC). Please contact us for more details.
Discover how to choose the right holder.
If you pick a LED below, holder suggestions will appear.

Refine your search:

LED Manufacturer

LED Type

LED Reference

Please choose LED Type first

Light Emitting Surface

mm diameter array

mm² surface

Dome

Yes

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer	LED Reference	FWHM 1	FWTM 1	LOR	Efficacy 1	CCI
BRIDGELUX	V4_HD BXRH_30G0600_A_72	15.4	29.4	87.4	9.3
BRIDGELUX	V3_HD_GEN_8	15.4	28.8	85.0	8.9	1.9
BRIDGELUX	VESTA 6 TW BXRV-TR-2765G-060-B-23	20.6	40.8	82.7	4.6	2.3
BRIDGELUX	V6 HD BXRH_40E1000_B_73	21.7	43.0	81.2	4.0
BRIDGELUX	VESTA 9 DTW BXRV-DR-1830-H-1000-A-13	26.8	62.3	81.1	2.1	8.2
CITIZEN	CLU7L3	14.3	26.7	78.7	9.5	0.8
CITIZEN	CLU7A2	17.0	31.4	78.0	6.6	2.2
CITIZEN	CLU7S3	17.6	36.8	73.9	5.0	0.7
CITIZEN	CLU7A3 Type-F	17.6	32.1	78.8	6.4	1.6
CITIZEN	CLU7R3	18.7	39.6	77.6	4.5	0.7
CITIZEN	CLU700	20.3	38.5	86.3	5.2
CITIZEN	CLU701	20.7	38.3	86.1	5.1
CITIZEN	CLU702	21.3	39.4	83.7	4.8	1.1
CITIZEN	CLU703	22.2	41.8	78.0	3.8	0.6
CITIZEN	CLU703 Type-F	22.4	46.7	80.2	3.4	0.6
CITIZEN	CLU711	24.5	53.6	84.9	2.9
CITIZEN	CLU712	24.8	52.5	84.7	2.9
CITIZEN	CLU710	24.9	51.4	84.9	3.0
CITIZEN	CLU02J	26.5	60.0	83.2	2.2
CITIZEN	CLU713 Type-F	27.7	62.1	77.3	2.0	0.8
CITIZEN	LCN-C01B2	28.8	60.9	73.5	1.9	3.6
CREE	XP-P	9.0	18.0	79.1	22.2	2.8
CREE	XQ-E HI	9.2	18.5	79.0	19.5
CREE	XP-E2	9.6	18.8	80.6	20.3	3.3
CREE	XD16 Premium White	9.8	19.1	83.5	19.6	2.9
CREE	XP-L HI	10.7	20.7	83.7	16.8
CREE	XP-G4 HI	10.9	21.8	79.3	14.6	2.2
CREE	XM-L COLOR GEN 2 HIGH INTENSITY	11.1	22.2	81.8	14.3	5.8
CREE	XPL-HI_post_PCN5155	11.7	22.9	78.9	13.0	1.1
CREE	XM-L COLOR GEN 2 HIGH DENSITY	11.7	23.4	84.7	13.8	8.2
CREE	XP-G4	11.9	22.8	82.2	13.8	1.2
CREE	XP-G3	12.1	23.5	88.7	14.9
CREE	XHP35 HI	12.1	23.1	82.6	13.3
CREE	XP-G2 HE	12.5	23.8	80.2	12.3	0.6
CREE	XHP50.3 HI	12.9	25.6	81.5	10.9	4.3
CREE	XHP35.2 HI	13.1	25.1	78.9	10.9	0.8
CREE	XM-L2	13.6	25.7	79.7	10.5	3.8
CREE	XE-G CLUSTER x4 RGBW	14.5	28.1	82.8	8.6	16.0
CREE	XQ-E HI CLUSTER x4 RGBW	15.2	29.0	79.9	8.1	12.6
CREE	XHP35.2 HD	16.3	29.3	80.9	7.9	1.2
CREE	XHP70.3 HI	18.5	34.6	80.6	5.6	2.1
CREE	CXB 1310	18.6	36.2	86.2	5.9
CREE	XHP50.3 HD	18.6	32.9	80.6	6.1	1.9
CREE	CXA 13XX	18.8	35.7	86.4	6.1
CREE	CXA 1507	22.3	53.0	84.9	3.1
CREE	CXA 1520	22.5	53.4	84.9	3.0
CREE	CXB 1520	24.0	57.3	84.7	2.7
CREE	XHP70.3	24.6	43.2	77.3	3.4	2.6
CREE	CXB 1507	25.1	54.9	84.4	2.8
EDISON	EDISON_2FM004M601F03001	17.2	30.7	81.2	7.2	12.5
LED ENGIN	LZ4-01MNCA	15.0	29.5	81.9	8.3	8.0
LUMILEDS	LUXEON Z ES	11.1	20.4	82.0	16.9	2.8
LUMILEDS	LUXEON RUBIX CLUSTER x4 RGBW	13.1	25.8	85.1	11.3	15.9
LUMILEDS	LUXEON Z CLUSTER x4 RGBW	14.3	25.7	82.3	10.3	11.6
LUMILEDS	LUXEON Z CLUSTER x4 TUNABLE WHITE	14.4	25.8	80.4	10.1	1.9
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS01H04	16.5	32.1	87.2	7.7
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS01H06	18.7	37.5	86.4	5.6
LUMILEDS	LUXEON M	20.4	35.2	78.8	5.1	1.2
LUMILEDS	LUXEON_CX_PLUS_CoB_HDM02F09	22.2	51.2	84.9	3.2
LUMILEDS	LUXEON CZ CLUSTER x4 RGBW	22.7	37.6	81.3	4.5
LUMILEDS	LUXEON COB 1202	25.2	53.2	83.8	2.8
LUMILEDS	LUXEON_CX_PLUS_COB_HD	25.8	57.5	84.0	2.4
LUMILEDS	LUXEON_CX_PLUS_CoB_HDS04H09	25.9	56.7	84.0	2.4
LUMINUS	SST-12	10.1	19.8	81.0	18.6	4.3
LUMINUS	SFT-40	10.5	20.1	82.3	17.8	2.9
LUMINUS	SST_20_WxH	11.2	20.5	89.2	19.5
LUMINUS	SST_20_WxS	11.7	21.3	89.2	18.3
LUMINUS	SFT-70	12.3	23.0	80.9	13.2	2.5
LUMINUS	SBM_40_SC	12.5	23.2	80.3	12.8	11.6
LUMINUS	SST-40	12.9	24.8	82.1	11.7	2.3
LUMINUS	SST-70	15.3	28.2	88.1	8.7	2.4
LUMINUS	CXM_3	15.4	28.4	83.4	9.0	1.6
LUMINUS	CXM_4	17.7	34.3	83.4	6.6	1.3
LUMINUS	CXM_6	21.6	43.8	86.0	4.2
LUMINUS	CXM_9	26.9	59.5	82.4	2.1
NICHIA	NFSWE11A	9.6	18.2	84.8	24.8
NICHIA	NCSWE17AT	10.3	19.4	78.9	18.6	1.8
NICHIA	NVSW219CT-V2	10.3	19.8	79.1	17.5	1.8
NICHIA	NVSW719AC	11.1	21.0	80.6	15.7	1.6
NICHIA	NVSW219F_V1	12.2	22.7	88.4	16.1
NICHIA	NV4WB35AM	13.8	25.6	89.5	12.2
NICHIA	NVSW519A	13.9	25.2	86.6	12.7
NICHIA	E17A CLUSTER x4 RGBW	17.5	29.9	80.2	7.1	1.8
NICHIA	E17A CLUSTER x4 TW	18.1	35.9	80.2	5.5	3.7
NICHIA	NTCWT012B_V3	18.9	38.0	86.4	5.8
NICHIA	NJNWS012Z_V1MT	19.0	39.2	82.1	4.9	2.9
NICHIA	NVNWS007Z_V1	19.1	40.2	86.2	6.0
NICHIA	NV4L144AR	19.4	34.3	80.2	5.6	2.5
NICHIA	NTCWS024B_V3	21.5	41.2	85.8	4.6
NICHIA	NJCWS024Z_V1	21.9	44.3	85.3	4.1
NICHIA	NFCWL036B_V3	24.1	53.5	84.4	3.2
NICHIA	NVEWL016Z_V1	24.4	53.4	84.0	2.9
OSRAM	OSLON COMPACT CM LUW CEUN.CE	8.0	16.9	80.5	25.8	3.4
OSRAM	OSLON COMPACT CL LUW CEUP	8.7	17.7	81.6	23.1
OSRAM	OSLON COMPACT PL KW CELNM2.TK	8.7	17.7	82.5	23.8	2.6
OSRAM	OSLON BLACK FLAT LUW HWQP	8.8	17.8	79.5	23.4
OSRAM	OSLON Boost HX KW CULPM1.TG	8.8	18.2	89.1	26.1
OSRAM	OSTAR PROJECTION COMPACT KW CSLNM1.TG	9.0	18.1	79.8	21.3	3.8
OSRAM	OSLON BOOST HM KW CELMM1.TG	9.2	17.5	80.6	23.0	4.0
OSRAM	OSCONIQ C 2424 GW PLLRA1.EM	9.8	19.2	89.6	23.0
OSRAM	OSCONIQ P3737 GW PUSRA1.EM	10.3	20.6	89.4	19.5
OSRAM	OSTAR STAGE LE CWUW S2W	11.1	21.4	81.2	15.6	3.0
OSRAM	OSLON SQUARE GW CSSRMU.CM	11.1	21.7	88.1	17.9
OSRAM	OSLON SQUARE GW CSSRM1.BM	11.5	21.8	80.8	14.2	1.3
OSRAM	OSCONIQ P3737 GW PULTA1.CM	11.7	22.3	89.5	16.4
OSRAM	OSTAR STAGE LE RTDUW S2WN	11.9	22.1	81.8	14.4	11.9
OSRAM	PURE 1010 RGBW CLUSTER x4	12.5	23.4	79.8	12.6	9.6
OSRAM	OSCONIQ P3737 GW PUSTA1.PM	12.7	24.3	89.5	13.7
OSRAM	OSTAR STAGE LE RTDUW S2WP	14.0	25.3	84.8	11.0	8.5
PROLIGHT OPTO	PBEE_40FTE	11.8	22.5	83.1	14.2	6.6
PROLIGHT OPTO	PQ2A CLUSTER x4 RGBW	15.4	27.9	81.7	8.5	9.6
SEOUL	SPF05F0A	12.1	22.9	82.0	13.5	6.4
SEOUL	Z5M4	12.2	23.7	88.6	15.0
SEOUL	SPF05F0B	12.7	23.9	82.9	12.4	4.7
XICATO	XTM & XIM 9MM	27.5	60.0	78.5	2.1	3.4
