Ref:

HADAR70V

Very Large Collimator

~55° Very Large Collimator
Ø 70 mm Very Large beam PMMA collimator


This article is available on demand. Please contact us or our distributors.

More details :

HADAR70V is a Ø 70 mm Large beam PMMA collimator. Diamond turned optic provides industry’s highest efficiency and efficacy with smooth cut-off and extremely low surface brightness. HADAR70L is compatible with variety of snap-on window accessories (HADAR70W*). HADAR70L has typical efficiency of 92 % and supporting single color and tunable white COBs from 3 mm – 23 mm LES, with better 3rd party connector support.

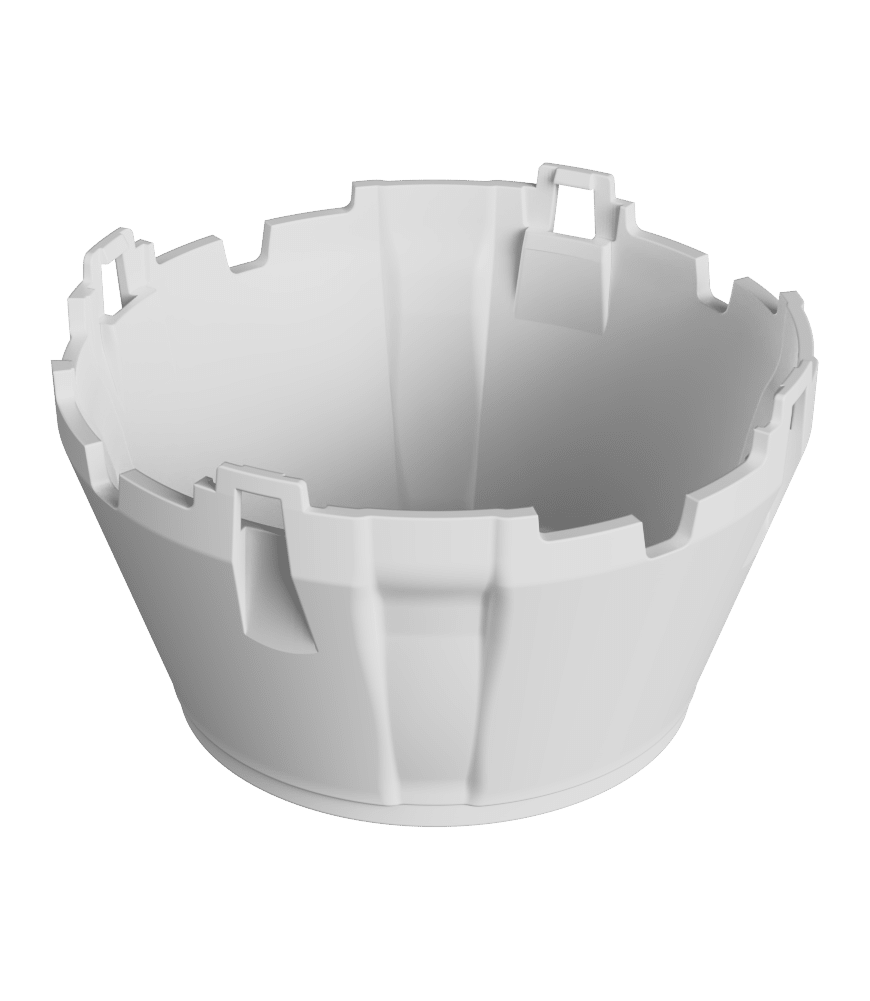

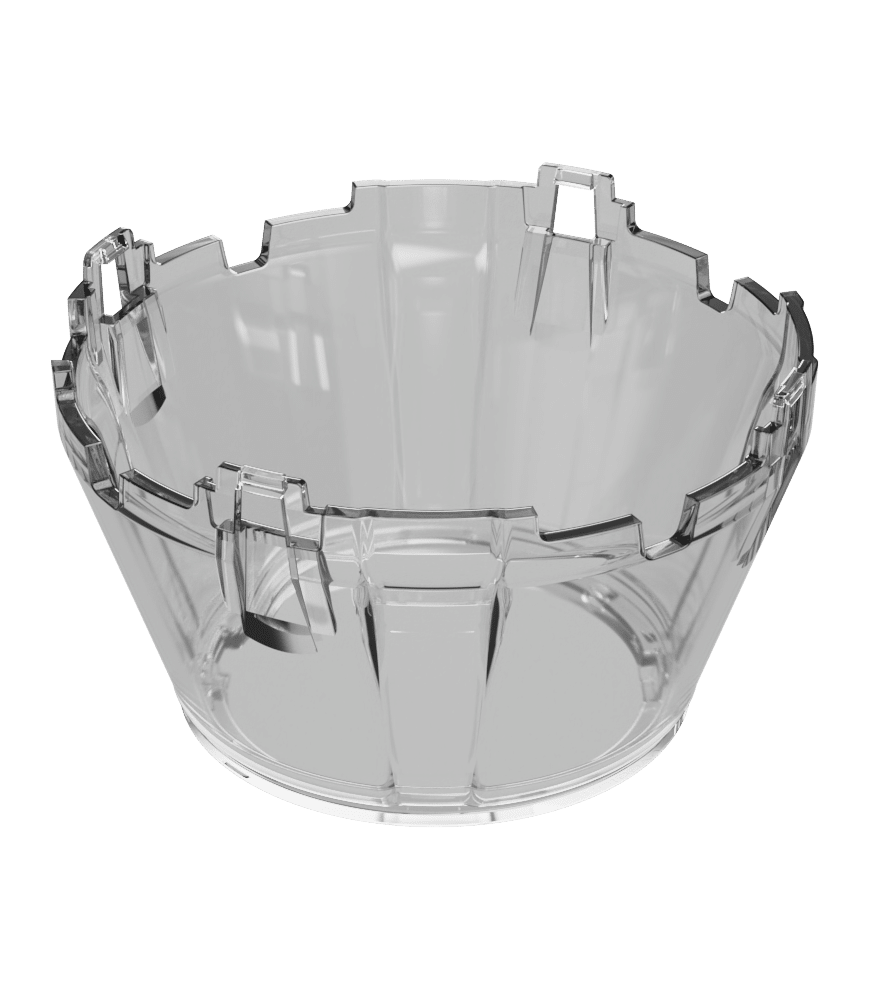

See HADAR70 holder options to find suitable holder for integrating the part with LLH66 / Bender+Wirth, BJB35, BJB50, HEKLA-K or HEKLA-G2 solderless connectors.

See also HADAR70 leaflet or download full Datasheet

Refine your search:

Measured results in black Simulated results in blue

Compatibility

LED Manufacturer LED Reference FWHM 1 FWHM 2 FWTM 1 FWTM 2 LOR Efficacy 1 Efficacy 2 CCI
View results

Compatible accessories:

Please select a unique LED reference
