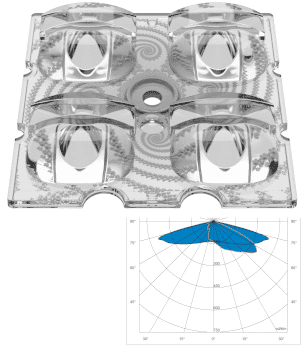

50 x 50 mm Street lighting solution
2×2 Road lighting collimator for Narrow roads
Optimized for both 3535 & 5050 high-power LED packages
IESNA*: Type III Medium
Applications: Wide roads, M class design
Where to use: Typical pole height to distance ratio 1 : 4.5
Cutoff class: Semicutoff (Cutoff with protective glass)
More details :
GAGGIONE’s standard road lighting range is expanding! New AVIKA2X25050* -LN1, -ME and -LW1 lenses are the first optics in the market passing requirements energy efficiently with both 5050 and 3535 LED packages. Designed and manufactured in FRANCE.
AVIKA2X25050LW1 is designed for multi-lane motorways, where road width is wider than the pole height.
Versatile solution for both: Illuminance and Luminance based roads.
Extremely low threshold increment(TI) and high longitudinal uniformity (UI).
Optical efficiency: >90%
Cut-off classification: Cut-off (full cut-off in actual luminaire)
Optics are optimized for EN13201 M roads, providing excellent uniformity and minimized backlight.
Well controlled backlight and Cut-off design allows the lenses to be used in countries where backlight is regulated by law.
For even stricter requirements, GAGGIONE have developed backlighting mask which is ideal for next to building installations.
See also AVIKA leaflet or download complete datasheet

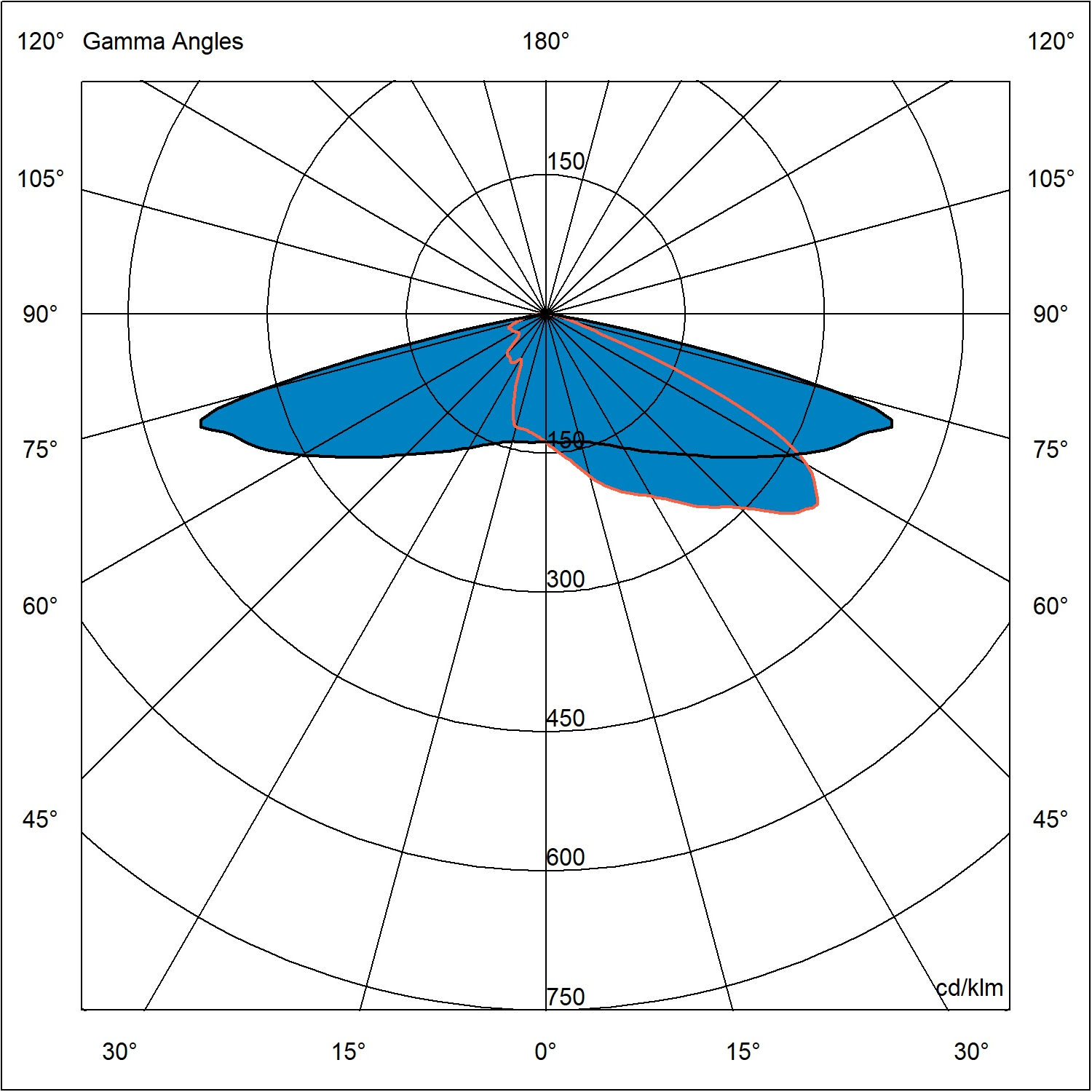

Photometric files:
Fortimo FastFlex 2×2 DAG5 (HP 3535)
Fortimo FastFlex 2×2 DA UHE (MP 5050)
Download All brands from here
Refine your search:
Compatibility
| LED Manufacturer | LED Reference | FWHM 1 | FWHM 2 | FWTM 1 | FWTM 2 | LOR | Efficacy 1 | Efficacy 2 | CCI |
|---|---|---|---|---|---|---|---|---|---|
| BRIDGELUX | SMD 2835 1W 9V | 81.3 | 0.4 | ||||||
| CREE | J Series 3030 P Class JK 6V | 80.6 | 0.4 | ||||||
| CREE | J Series 5050 24V P CLASS | 77.8 | 0.3 | ||||||
| CREE | J Series 5050B 30V K Class | 76.8 | 0.3 | ||||||
| CREE | J Series 5050B 6V K Class | 76.5 | 0.3 | ||||||
| CREE | XB-D | 78.0 | 0.3 | ||||||
| CREE | XE-G | 78.9 | 0.4 | ||||||
| CREE | XM-L2 | 80.0 | 0.3 | ||||||
| CREE | XM-L3 | 77.7 | 0.3 | ||||||
| CREE | XP-E2 | 80.6 | 0.4 | ||||||
| CREE | XP-G2 | 80.2 | 0.3 | ||||||
| CREE | XP-G3 | 78.7 | 0.3 | ||||||
| CREE | XP-G4 | 82.2 | 0.3 | ||||||
| CREE | XP-L2 | 79.5 | 0.3 | ||||||
| CREE | XP-L | 79.5 | 0.3 | ||||||
| CREE | XP-P | 81.6 | 0.4 | ||||||
| CREE | XPL-HI_post_PCN5155 | 79.2 | 0.4 | ||||||
| CREE | XQ-E HI | 80.9 | 0.4 | ||||||
| CREE | XQ-E | 80.9 | 0.3 | ||||||
| CREE | XT-E | 79.3 | 0.3 | ||||||
| LUMILEDS | LUXEON 3030 2D round | 80.8 | 0.3 | ||||||
| LUMILEDS | LUXEON 3030 2D square | 81.5 | 0.3 | ||||||
| LUMILEDS | LUXEON 3030 HE Plus | 80.9 | 0.3 | ||||||
| LUMILEDS | LUXEON 3535L HE plus round | 81.0 | 0.4 | ||||||
| LUMILEDS | LUXEON 3535L HE plus square | 81.0 | 0.3 | ||||||
| LUMILEDS | LUXEON 3535L HE | 81.0 | 0.4 | ||||||
| LUMILEDS | LUXEON 3535L | 81.0 | 0.4 | ||||||
| LUMILEDS | LUXEON 5050 round LES 24V | 77.3 | 0.3 | ||||||
| LUMILEDS | LUXEON 5050 square LES 30V | 81.6 | 0.3 | ||||||
| LUMILEDS | LUXEON C | 76.7 | 0.3 | ||||||
| LUMILEDS | LUXEON HL2Z | 80.3 | 0.4 | ||||||
| LUMILEDS | LUXEON MZ | 79.7 | 0.3 | ||||||
| LUMILEDS | LUXEON XR-5050 SQR 2X4 | 84.6 | 0.3 | ||||||
| LUMILEDS | LUXEON REBEL PWC2 | 80.2 | 0.4 | ||||||
| LUMILEDS | LUXEON TX | 81.0 | 0.3 | ||||||
| LUMILEDS | LUXEON V | 78.9 | 0.3 | ||||||
| LUMILEDS | LUXEON Z ES | 81.3 | 0.4 | ||||||
| LUMINUS | SST-12 | 81.1 | 0.4 | ||||||
| LUMINUS | SST-20 | 80.9 | 0.4 | ||||||
| NICHIA | NF2W757G_V3F1 | 81.4 | 0.4 | ||||||
| NICHIA | NF3W585AR | 77.6 | 0.3 | ||||||
| NICHIA | NFSW757G-V3 | 81.5 | 0.4 | ||||||
| NICHIA | NV4WB35AM | 80.1 | 0.3 | ||||||
| NICHIA | NVSW219F_V1 | 78.9 | 0.3 | ||||||
| NICHIA | NVSW319A | 76.4 | 0.4 | ||||||
| NICHIA | NVSW319B | 78.3 | 0.3 | ||||||
| NICHIA | NVSW519A | 77.4 | 0.3 | ||||||
| NICHIA | NVSW719AC | 81.3 | 0.4 | ||||||
| NICHIA | NVSWE21AT | 80.6 | 0.4 | ||||||
| OSRAM | OSCONIQ C 2424 GW PLLRA1.EM | 81.2 | 0.4 | ||||||
| OSRAM | OSCONIQ P3030 GW QSSPA1.PM | 80.0 | 0.4 | ||||||
| OSRAM | OSCONIQ P3737 GW PUSRA1.EM | 80.7 | 0.4 | ||||||
| OSRAM | OSCONIQ P3737 GW PUSTA1.PM | 80.8 | 0.3 | ||||||
| OSRAM | OSCONIQ S 3030 GW QSLR31.EM | 80.8 | 0.3 | ||||||
| OSRAM | OSCONIQ S 5050 GW Q9LR34.EM | 81.3 | 0.3 | ||||||
| OSRAM | OSLON SQUARE FLAT KW CSLPM2.PC | 78.9 | 0.3 | ||||||
| OSRAM | OSLON SSL 150 GW CSHPM1.PM | 78.8 | 0.4 | ||||||
| OSRAM | OSLON SSL 80 GW CS8PM1.CM | 83.8 | 0.4 | ||||||
| OSRAM | OSTAR PROJECTION COMPACT KW CSLNM1.TG | 81.1 | 0.4 | ||||||
| SAMSUNG | LH508C | 82.2 | 0.3 | ||||||
| SAMSUNG | LH181B | 80.2 | 0.3 | ||||||
| SAMSUNG | LH351B | 79.9 | 0.3 | ||||||
| SAMSUNG | LH351C | 80.8 | 0.3 | ||||||
| SAMSUNG | LH351D | 79.4 | 0.3 | ||||||
| SAMSUNG | LH502C | 82.2 | 0.3 | ||||||
| SAMSUNG | LH502D | 82.4 | 0.3 | ||||||
| SAMSUNG | LH508D | 82.4 | 0.3 | ||||||
| SAMSUNG | LM301B | 83.1 | 0.4 | ||||||
| SAMSUNG | XHP35 HI | 80.9 | 0.3 | ||||||
| SEOUL | Z5M4 | 80.0 | 0.3 | ||||||
| SEOUL | Z8Y19 | 80.1 | 0.4 | ||||||
| SEOUL | Z8Y22P | 80.4 | 0.3 | ||||||
| SEOUL | Z8Y22 | 80.4 | 0.4 |
