280MM Linear Dark Light solution

POLLUX7X1

Gaggione’s new diamond-turned glare-free family, POLLUX7X1 is here (280 mm x 40 mm)

Beautifully designed, high precision micro-structured optics provides excellent color consistency and homogenous light. POLLUX7X1 optics are tunable white optimized and mixing colors without the need of using diffusing material.

– POLLUX7X1 comes with 9 different photometries

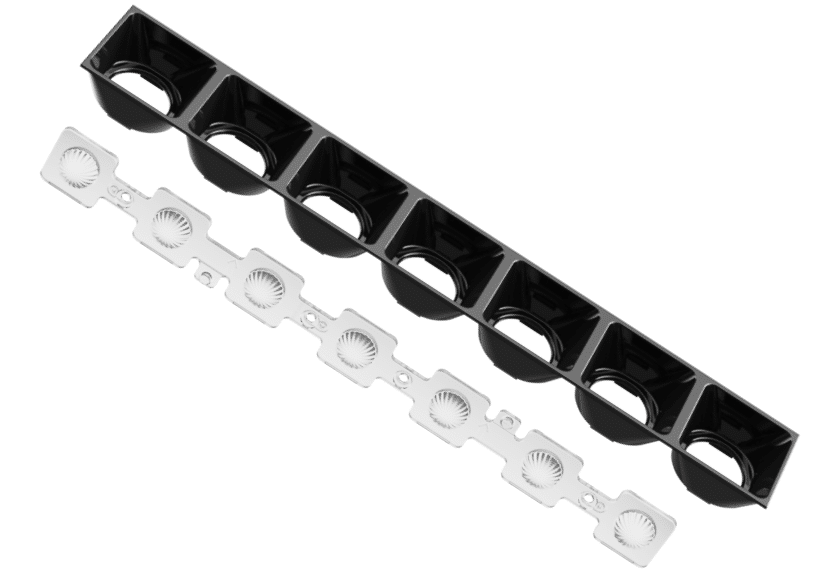

– 2 Louvre versions:
low profile louvre (H = 15.8 mm),
tall louvre (H = 20.25 mm)
– 2 louvre color options: Black or White
– 2 different louvre finishes: Glossy/Polished or Matt finishing

Office

Supermarket

Museums

Warehouse

Boutique shop

Architectural

RANGE | LED COMPATIBILITY | 2D SCHEMATICS

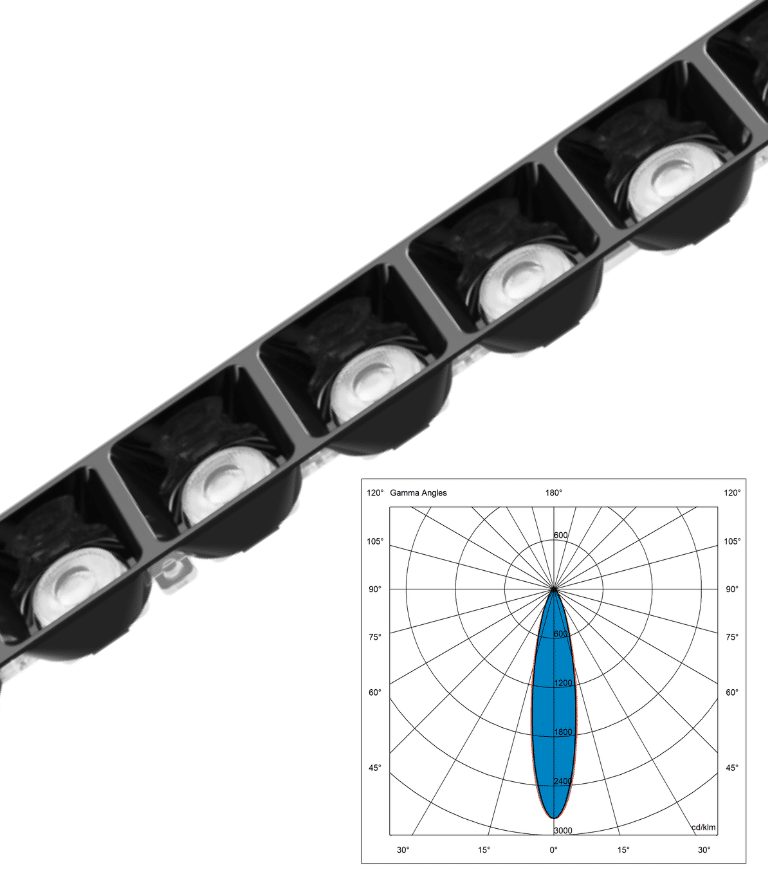

POLLUX7X1N

Narrow (~10 – ~15°)

POLLUX7X1G

Wall Grazer (~20°)

POLLUX7X1M

Medium (~35°)

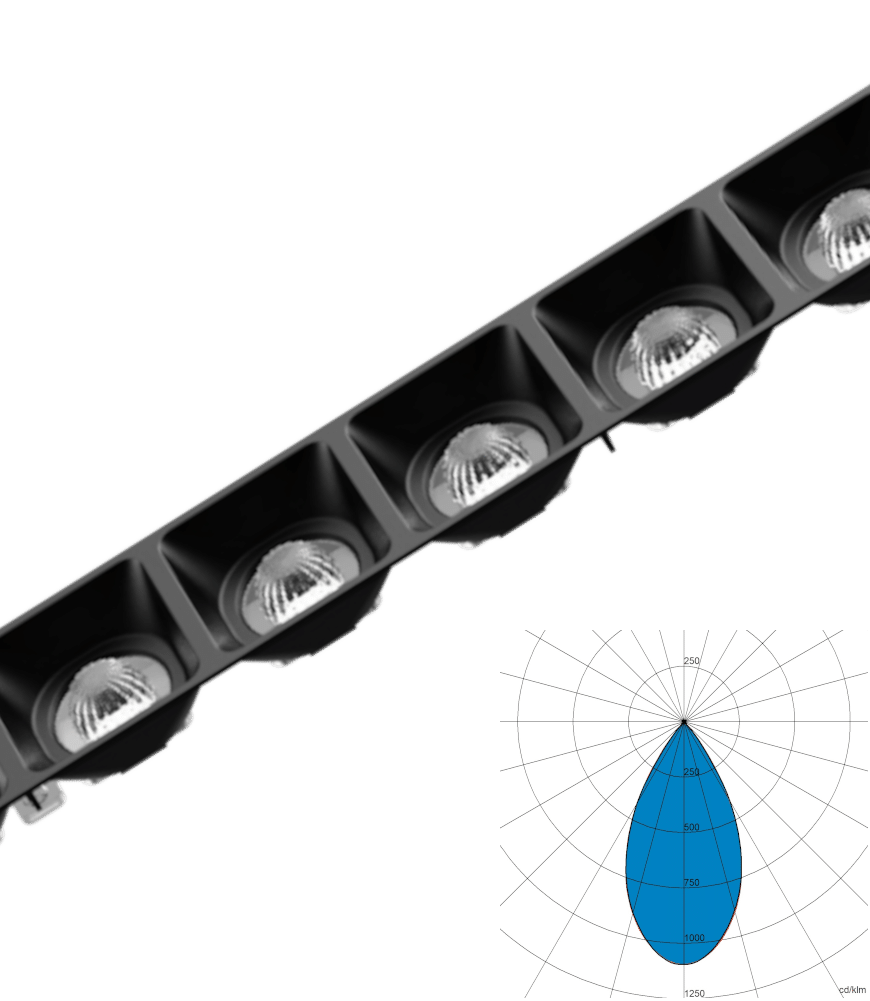

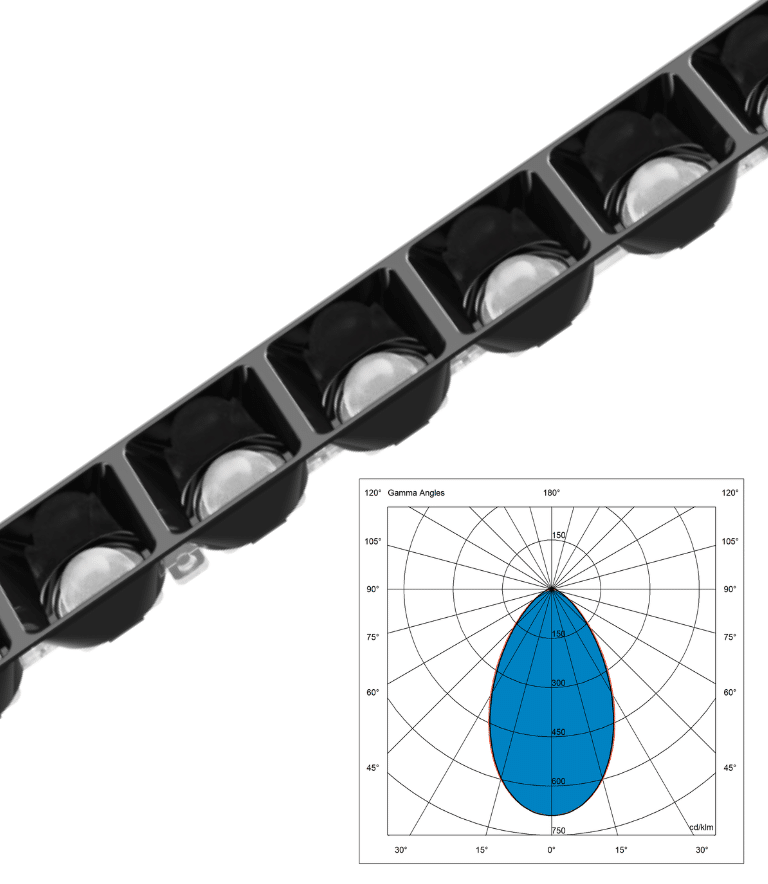

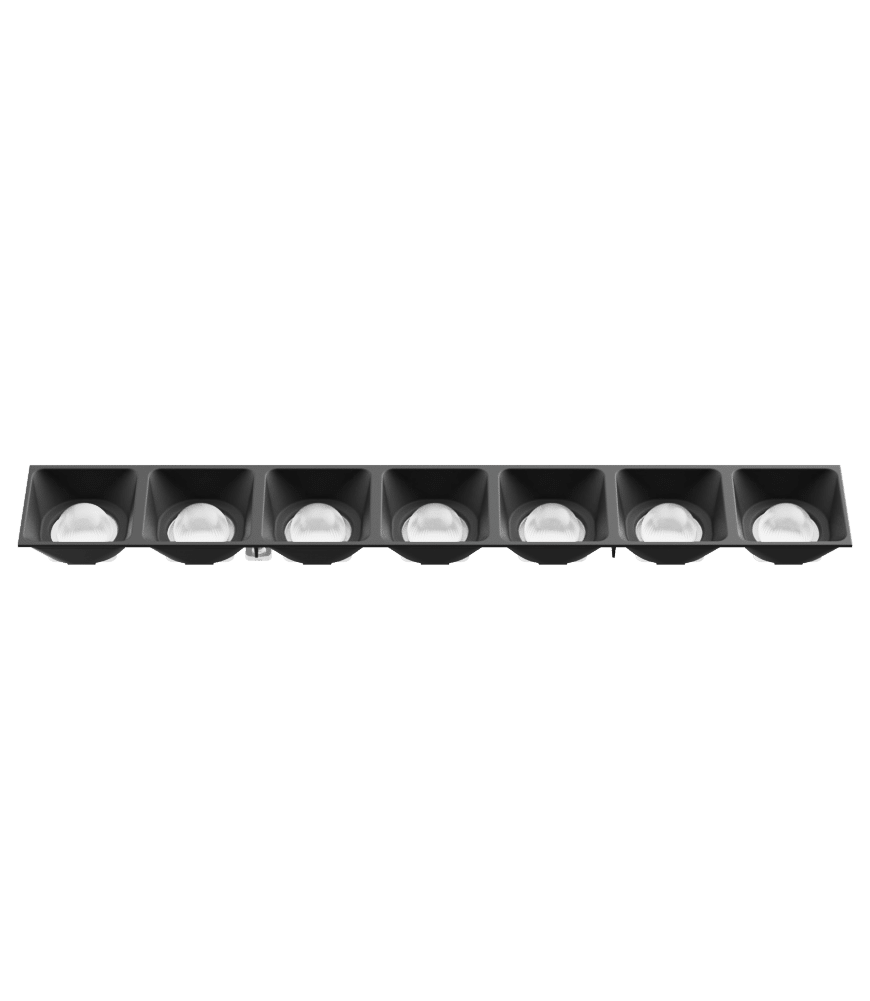

POLLUX7X1W

Wide (~55°)

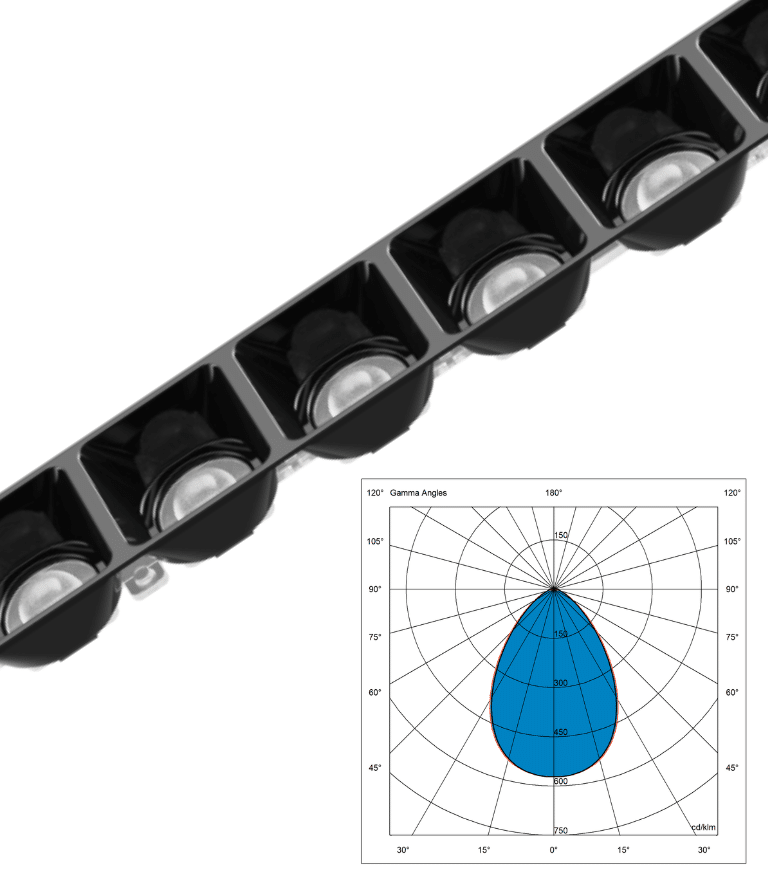

POLLUX7X1L

Large (~70°)

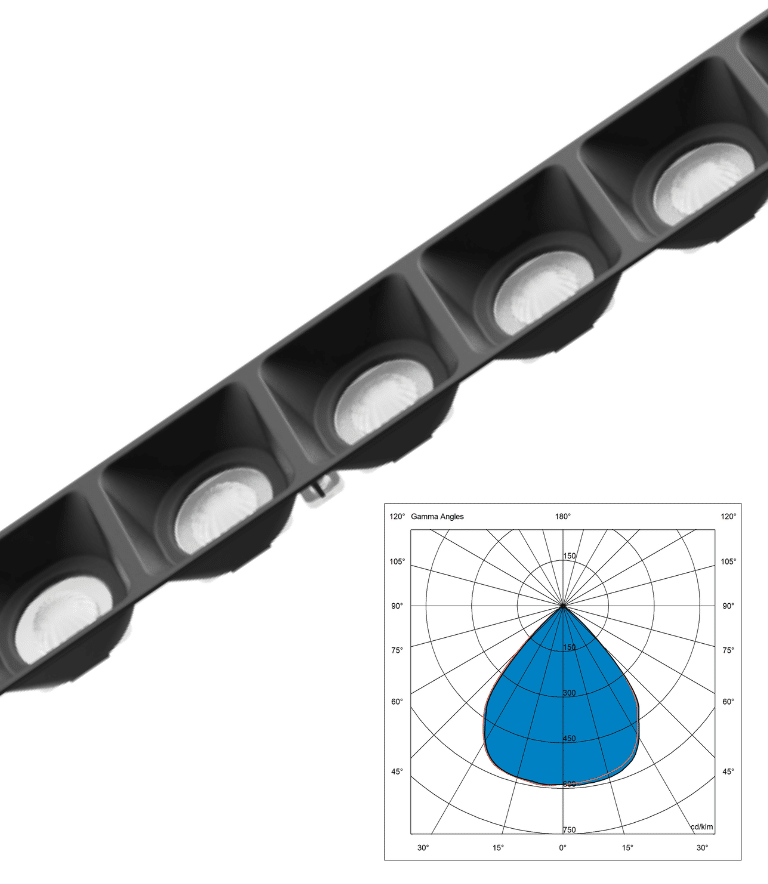

POLLUX7X1VL

Very Large (~70°)

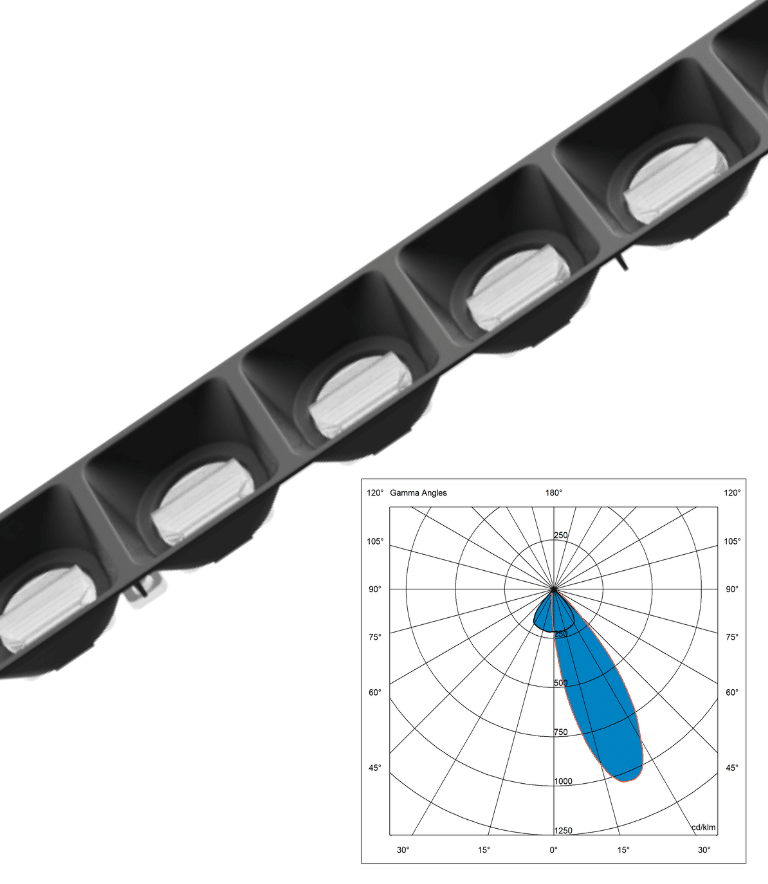

POLLUX7XAS25

Shelf Wall Washer

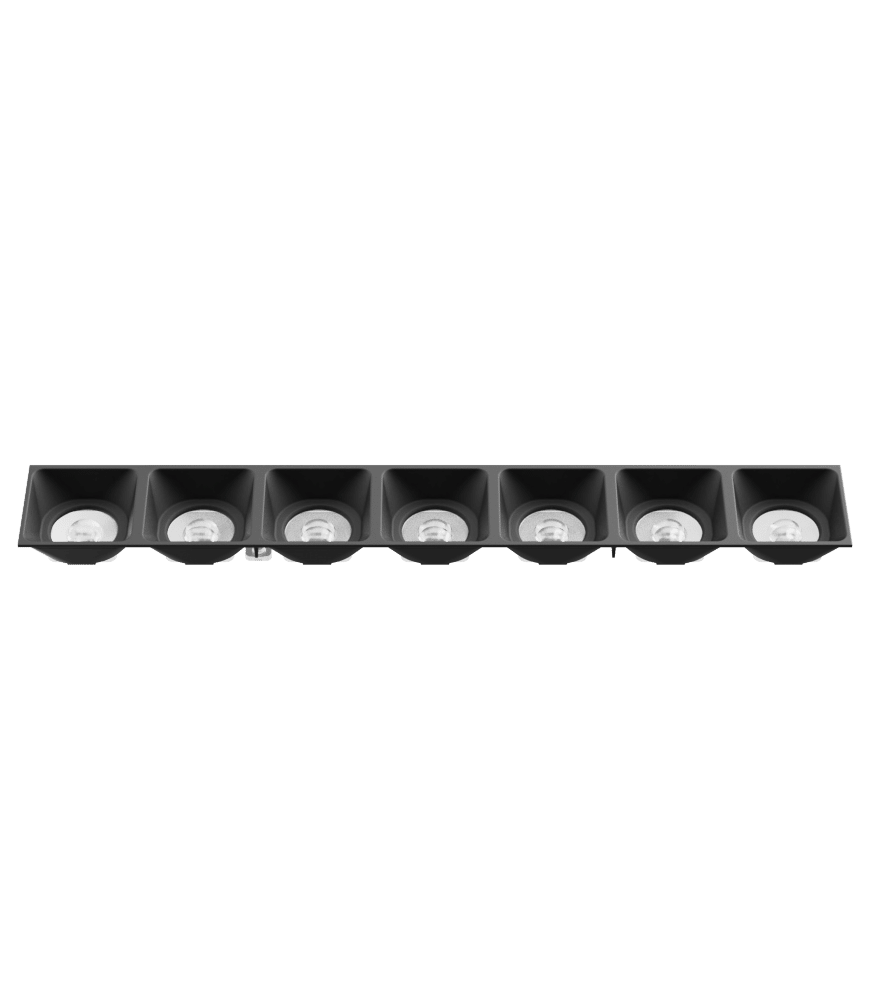

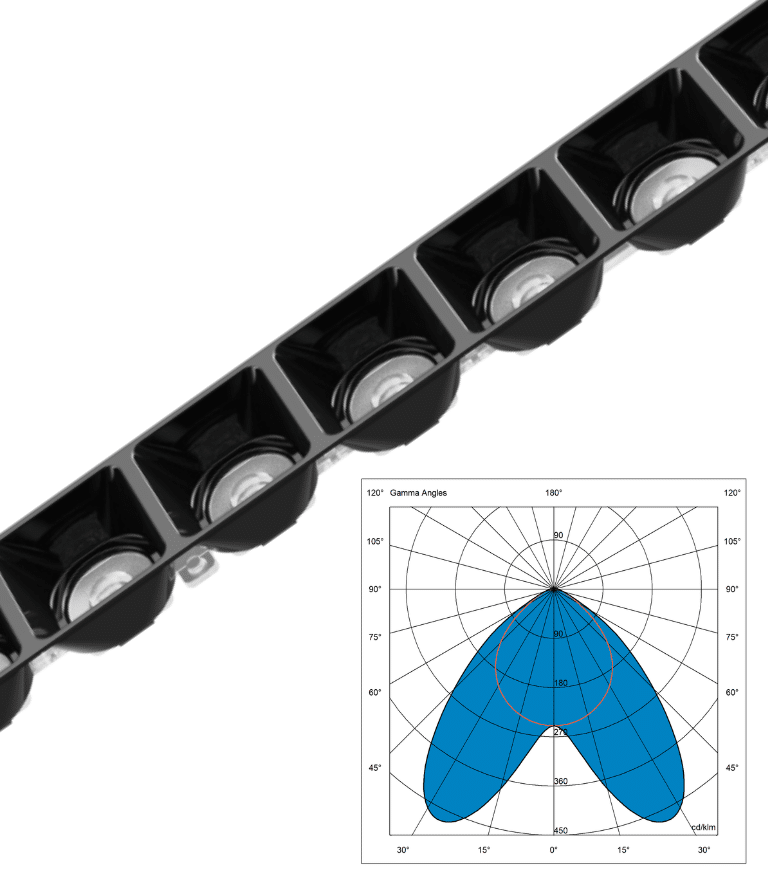

POLLUX7X1DA35

Double Asymmetric Wall Washer

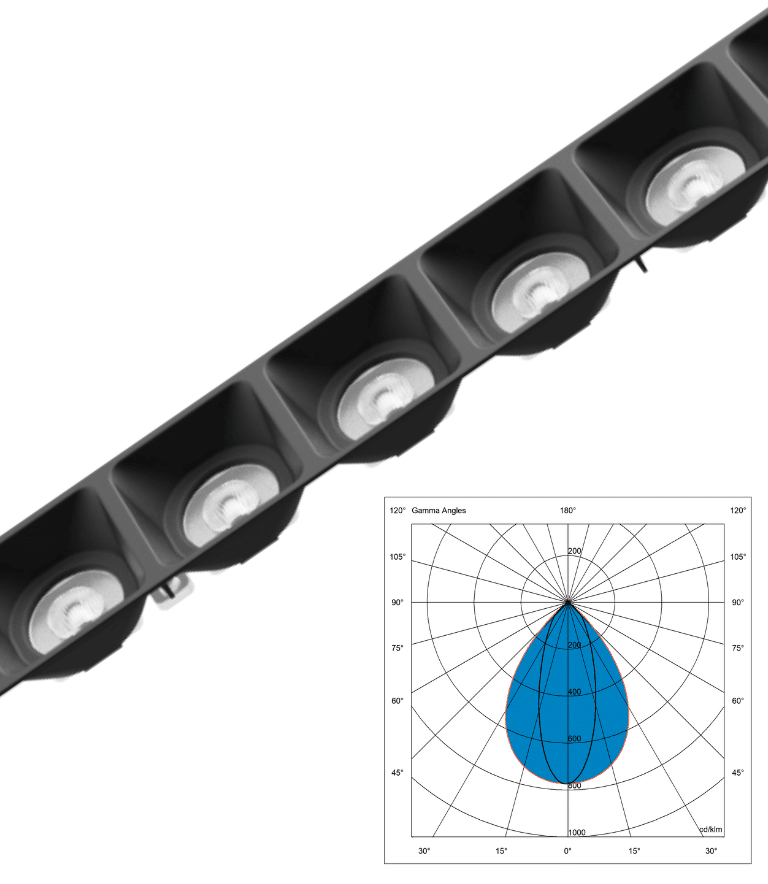

POLLUX7X1E

Elliptical (~20 x ~80°)

POLLUX7X1

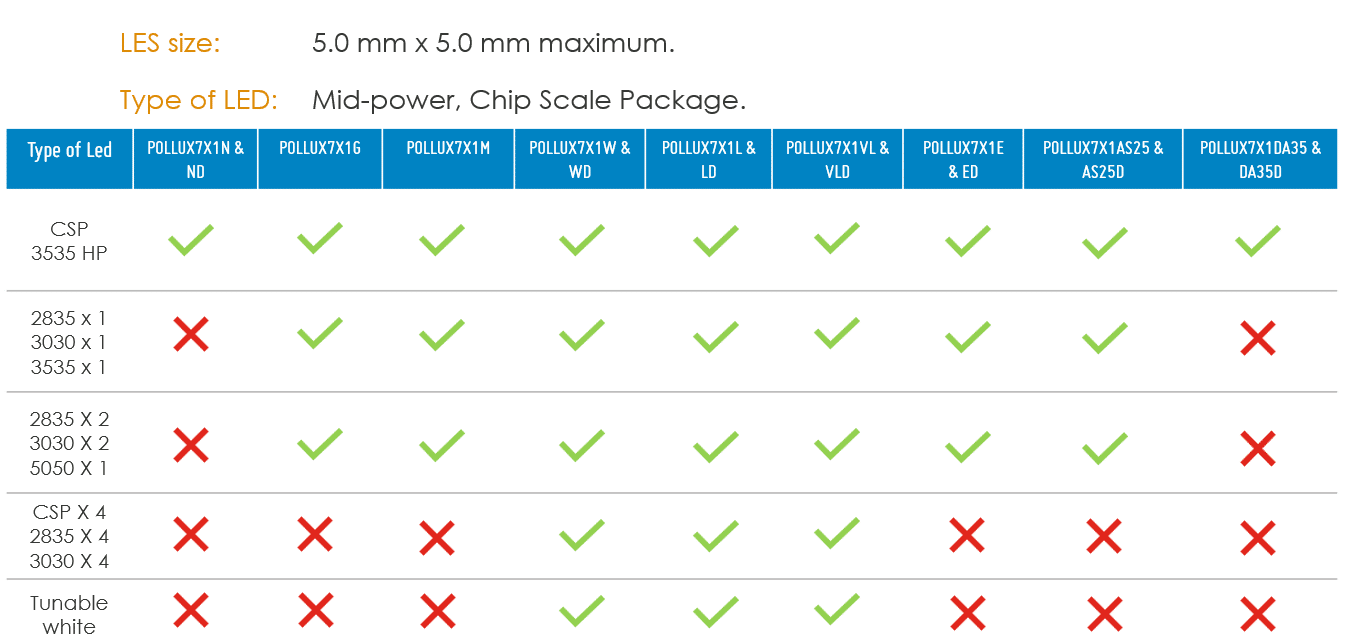

LED COMPATIBILITY CHART

** Some photometries such as POLLUX7X1E, POLLUX7X1AS25 and POLLUX7X1DA35 can be used even with 3pcs of CSPs (linear installation),
please kindly contact us (contact@gaggione.com) for more compatibility information

POLLUX7X1

LOUVRE DRAWINGS

Asymmetric Linear Collimator

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02BCC00

NO

LLS25N12BCC00

LLS25C12BCC00

LLS25G12BCC00

LLS25M12BCC00

LLS25W12BCC00

LLS25V12BCC00

LLS25E12BCC00

LLH02BCC001

YES

LLS25N12BCC001

LLS25C12BCC001

LLS25G12BCC001

LLS25M12BCC001

LLS25W12BCC001

LLS25V12BCC001

LLS25E12BCC001

LLH02BCC02

NO

LLS25N12BCC02

LLS25C12BCC02

LLS25G12BCC02

LLS25M12BCC02

LLS25W12BCC02

LLS25V12BCC02

LLS25E12BCC02

LLH02BCC021

YES

LLS25N12BCC021

LLS25C12BCC021

LLS25G12BCC021

LLS25M12BCC021

LLS25W12BCC021

LLS25V12BCC021

LLS25E12BCC021

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02AAC00

NO

LLS25N02AAC00

LLS25C02AAC00

LLS25G02AAC00

LLS25M02BCC00

LLS25W02BCC00

LLS25V02BCC00

LLS25E02BCC00

LLH02AAC001

YES

LLS25N02AAC001

LLS25C02AAC001

LLS25G02AAC001

LLS25M02BCC001

LLS25W02BCC001

LLS25V02BCC001

LLS25E02BCC001

LLH02AAC02

NO

LLS25N02AAC02

LLS25C02AAC02

LLS25G02AAC02

LLS25M02BCC02

LLS25W02BCC02

LLS25V02BCC02

LLS25E02BCC02

LLH02AAC021

YES

LLS25N02AAC021

LLS25C02AAC021

LLS25G02AAC021

LLS25M02BCC021

LLS25W02BCC021

LLS25V02BCC021

LLS25E02BCC021

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02XAL00

NO

LLS25N02XAL00

LLS25C02XAL00

LLS25G02XAL00

LLS25M02XAL00

LLS25W02XAL00

LLS25V02XAL00

LLS25E02XAL00

LLH02XAL001

YES

LLS25N02XAL001

LLS25C02XAL001

LLS25G02XAL001

LLS25M02XAL001

LLS25W02XAL001

LLS25V02XAL001

LLS25E02XAL001

LLH02XAL02

NO

LLS25N02XAL02

LLS25C02XAL02

LLS25G02XAL02

LLS25M02XAL02

LLS25W02XAL02

LLS25V02XAL02

LLS25E02XAL02

LLH02XAL021

YES

LLS25N02XAL021

LLS25C02XAL021

LLS25G02XAL021

LLS25M02XAL021

LLS25W02XAL021

LLS25V02XAL021

LLS25E02XAL021

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02HEL00

NO

LLS25N02HEL00

LLS25C02HEL00

LLS25G02HEL00

LLS25M02HEL00

LLS25W02HEL00

LLS25V02HEL00

LLS25E02HEL00

LLH02HEL001

YES

LLS25N02HEL001

LLS25C02HEL001

LLS25G02HEL001

LLS25M02HEL001

LLS25W02HEL001

LLS25V02HEL001

LLS25E02HEL001

LLH02HEL02

NO

LLS25N02HEL02

LLS25C02HEL02

LLS25G02HEL02

LLS25M02HEL02

LLS25W02HEL02

LLS25V02HEL02

LLS25E02HEL02

LLH02HEL021

YES

LLS25N02HEL021

LLS25C02HEL021

LLS25G02HEL021

LLS25M02HEL021

LLS25W02HEL021

LLS25V02HEL021

LLS25E02HEL021

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02RD100

NO

LLS25N02RD100

LLS25C02RD100

LLS25G02RD100

LLS25M02RD100

LLS25W02RD100

LLS25V02RD100

LLS25E02RD100

LLH02RD1001

NO

LLS25N02RD1001

LLS25C02RD1001

LLS25G02RD1001

LLS25M02RD1001

LLS25W02RD1001

LLS25V02RD1001

LLS25E02RD1001

LLH02RD102

NO

LLS25N02RD102

LLS25C02RD102

LLS25G02RD102

LLS25M02RD102

LLS25W02RD102

LLS25V02RD102

LLS25E02RD102

LLH02RD1021

NO

LLS25N02RD1021

LLS25C02RD1021

LLS25G02RD1021

LLS25M02RD1021

LLS25W02RD1021

LLS25V02RD1021

LLS25E02RD1021

HOLDER

ADH

LLC25N

LLC25C

LLC25G

LLC25M

LLC25W

LLC25V

LLC25E

LLH02MTB00

NO

LLS25N02MTB00

LLS25C02MTB00

LLS25G02MTB00

LLS25M02RD100

LLS25W02RD100

LLS25V02RD100

LLS25E02RD100

LLH02RMTB001

NO

LLS25N02MTB001

LLS25C02MTB001

LLS25G02RD001

LLS25M02RD1001

LLS25W02RD1001

LLS25V02RD1001

LLS25E02RD1001

LLH02MTB02

NO

LLS25N02MTB02

LLS25C0MTB02

LLS25G02RD102

LLS25M02RD102

LLS25W02RD102

LLS25V02RD102

LLS25E02RD102

LLH02MTB021

NO

LLS25N02MTB021

LLS25C02MTB021

LLS25G02RD1021

LLS25M02RD1021

LLS25W02RD1021

LLS25V02RD1021

LLS25E02RD1021
